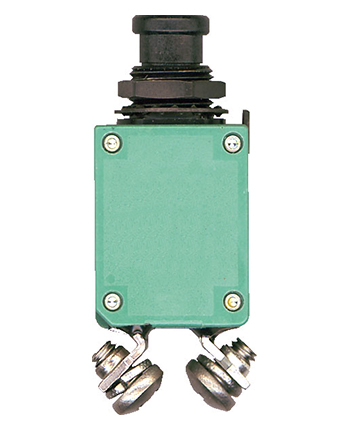

2TC13 Series Circuit Breaker | 15 Amp Rating

Product Description

The 2TC13 series single-phase TC circuit breakers provide reliable state-of-the-art circuit protection for aerospace power systems. The compact and lightweight design makes these circuit breakers well suited for aircraft avionics and electronic systems. The 2TC series ratings is coordinated so any rating will trip before another rating twice its capacity in the event of a fault. Ambient temperature compensation allows the 2TC circuit breakers to operate where temperatures exceeds the 160°F maximum of non–ambient compensated thermal circuit breakers and may also operate in temperatures as high as 150°F without derating the circuit breaker while eliminating the need for added cooling.

Includes hardware.

Specifications

• Weight:
  25 g, maximum
• Current Rating:
  15 Amps
• Vibration:
  10G minimum, 50 - 500 Hz
• Mechanical Shock:
  50G
• Acceleration:
  10G
• Operating Altitude:
  70,000 ft

Product Codes

• Mfr Part No
  2TC13-15
• AS
  AS58091
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.20.0020
