M303 Series Outside Air Temperature and Voltage Indicator | Front Mount

M303 Series Outside Air Temperature and Voltage Indicator | Front Mount

DAVTRON

Call For Pricing
In stock
EDMO # 303-1
MFR Part # M303-1
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

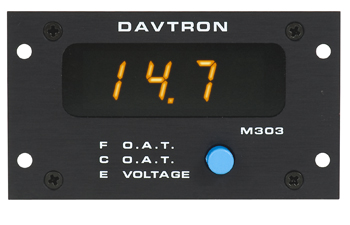

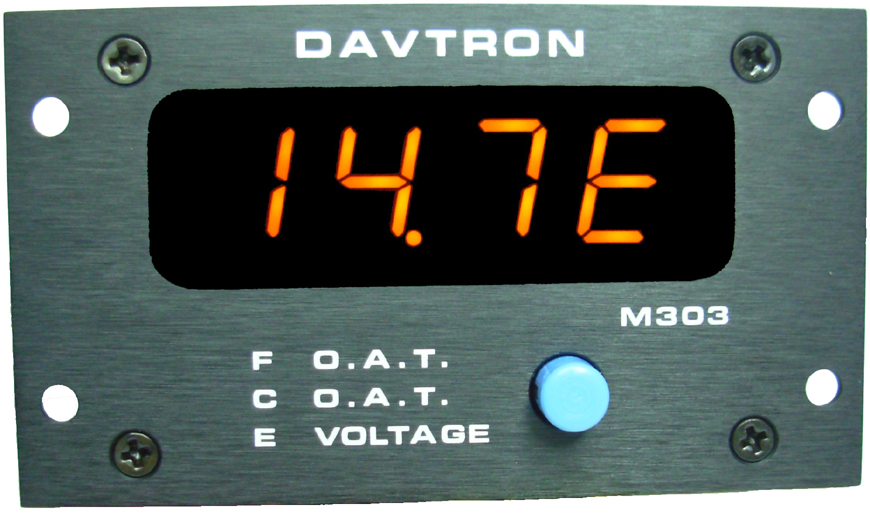

The M303 Series Indicator is a single push-button instrument with digital display of the three functions; voltage, outside air temperature (Fahrenheit), and outside air temperature (Centigrade).

Version 303-1 has a front mount.

Features

  • Calculates outside air temperature in ºF and ºC, voltage
  • Light weight
  • Panel mount
  • Automatic dimming
  • Miniature remote probe
  • Sunlight readable display
  • Laser engraved faceplate
  • FAA-PMA approved

Specifications

  • W eight: 5 oz
  • Dimensions: 2.9 x 1.5 x 1.65 in.
  • Input voltage: 14 to 28 VDC
  • Input current: 100mA max
  • Operating temperature: -25ºC to 60ºC
  • Voltage range: 10 to 32 Volts +/- 0.2 Volts Typ.

Related Products

Product Codes

  • Mfr Part No
    M303-1
  • ECCN
    7A994
  • PMA
    PQ1062NM
  • SCHEDULE B CODE
    9025.10.0000
