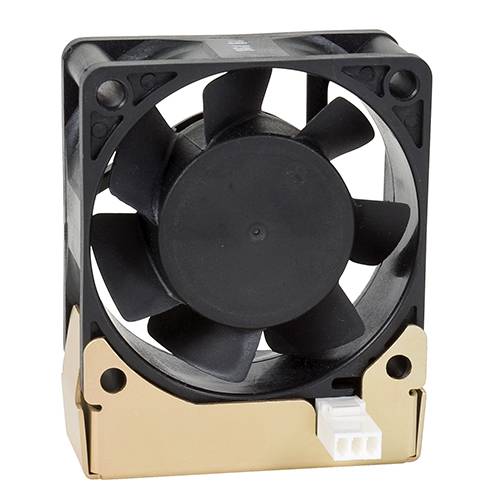

SAFE 128 Cooling Fan | Axial, Fault Detection, 28V

SAFE 128 Cooling Fan | Axial, Fault Detection, 28V

SANDIA AEROSPACE

EDMO#: 305468-00

MFR#: 305468-00

Description

The SAFE 128 is an axial fan that is designed to attach directly to an avionics unit’s cooling port. Providing a nominal 20 CFM (no load) of cooling air with an alert output whenever the fan RPM drops below a preset level.

Features

  • Directly attaches to cooling port
  • Fault detection output
  • High quality brushless motor
  • Connector kit included
  • 22-31 volts DC
  • FAA-PMA

Specifications

Weight:
.25 lb

Dimensions:
2.36 x 2.87 x 1.44 in

Operating voltage:
22-31 VDC

Current draw:
100mA nominal < .250mA Startup

Certification:
FAA-PMA

Product Codes

Mfr Part No :

305468-00

ECCN :

7A994

PMA :

PQ0894SW

SCHEDULE B CODE :

8414.59.9080
