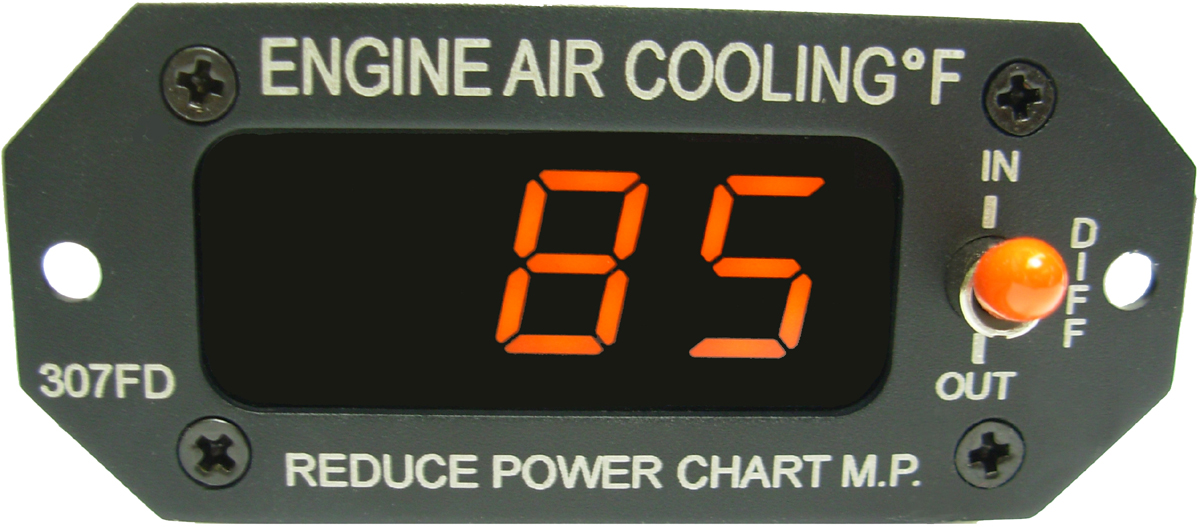

M307FD Differential Intercooler O.A.T Gauge | Fahrenheit

Product Description

The 307FD differential intercooler temperature gauge displays outside air temperature to the pilot. It features an auto-dimming display that is easy to read — even in sunlight — and requires minimum panel space.

Specifications

• Weight:
  4 oz
• Dimensions:
  2.52 x 1.1 x 2.7 in, maximum
• Temperature Range:
  -70°F to 290°F, accuracy ±1% of full scale
• Operating Temperature:
  -25°C to 60°C
• Input Voltage:
  12V and 30V
• Input Current:
  150 mA, maximum

Product Codes

• Mfr Part No
  M307FD
• ECCN
  7A994
• PMA
  PQ1062NM
• SCHEDULE B CODE
  8542.11.0020

Documentation

• 307FD-CD Mechanical Electrical Drawing
