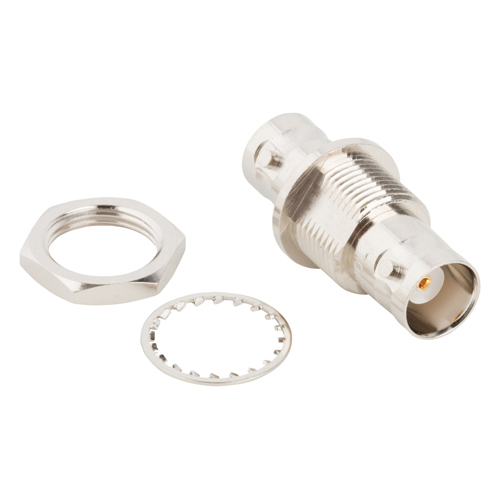

BNC RF Coaxial Adapter | Female, Straight, Bulkhead

BNC RF Coaxial Adapter | Female, Straight, Bulkhead

AMPHENOL

Call For Pricing
A tariff fee of $1.7688 EA may apply.
In stock
EDMO # 31-220NRFX
MFR Part # 031-220N-RFX
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 31-220NRFX is a BNC Jack to BNC Jack Straight Adapter with gold-plated phosphor bronze contacts. The body is made of brass with a nickel-plated finish and Delrin insulator. This adapter is commonly used in applications requiring 2 dissimilar RF interfaces to be connected.

Features

  • 50 ohms
  • Nickel shell plating
  • Gold-plated, phosphor bronze center contact
  • BNC jack to BNC jack bulkhead
  • Bayonet Lock
  • Delrin insulator

Also Purchased

AIR SPEED SWITCH

AIR SPEED SWITCH

EDMO DISTRIBUTORS, INC

Available to order

EDMO#: S-1498-2

MFR#: S1498-2

Call For Pricing

Specifications

  • Weight:
    0.64 oz
  • RF Series:
    BNC
  • Impedance:
    50 Ohms
  • Shell Plating:
    Nickel
  • Minimum Frequency:
    DC
  • Specification
    Maximum Frequency: 4 GHz
  • Body Style:
    Bulkhead
  • Orientation:
    Straight
  • Series:
    BNC
  • Contact Material:
    Phosphor Bronze
  • Specification
    Contact Plating: Gold
  • Specification
    Body Material: Brass

Related Products

Product Codes

  • Mfr Part No
    031-220N-RFX
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
  • UL
    E81956
