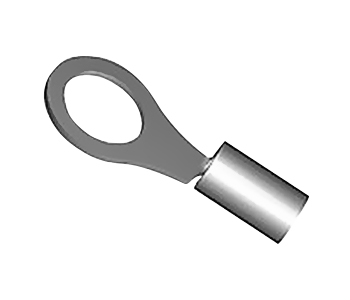

#2 SOLISTRAND Ring Terminal | 26–22 AWG wire, #2 stud size

Product Description

SOLISTRAND terminals and splices are used to terminate solid and strained wire and irregular shaped conductors. Constructed with high-conductivity copper that is electro-tinned for improved corrosion resistance. SOLISTRAND terminals consist of a completely closed barrel with serrations inside that provide optimum tensile strength and maximum electrical contact after crimping. The barrel has a conical entry for easy sire insertion.

Specifications

• Dimensions:
  11.79 x 3.56 mm
• Connector Type:
  Terminals
• Contact Materials:
  Copper
• Contact Plating:
  Tin
• Gender:
  Female
• Insulation:
  None
• Mounting Angle:
  Straight
• Mounting Method:
  screw
• Maximum Bundle Diameter:
  4.37 mm
• Stud Size:
  #2
• Termination Style:
  Crimp
• Terminal Type:
  Ring
• Wire Gauge:
  22 AWG

Product Codes

• Mfr Part No
  31518

Documentation

• 31518_Diagram.pdf
