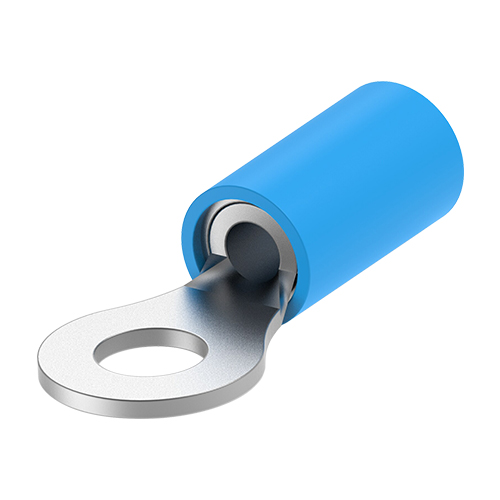

PIDG #8 Nylon Ring Terminal | 14 AWG, Blue
TE CONNECTIVITY
EDMO#: 320560
MFR#: 320560
Tariff fee may apply
Description
PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.
This ring terminal (EDMO# 320560) has blue insulation, a #6 stud size, and used on 14 AWG wire.
Features
- Blue nylon insulation material
- Tin-plated copper conductor
- Exceeds requirements of SAE AS7928, Type II, Class 1 and 2
Specifications
Color:
Blue
Contact Material:
Tin-plated copper
Insulation:
Nylon
Mounting Style:
Screw
Product Type:
Ring terminal
Series:
PIDG
Stud / Tab Size:
#8
Termination Style:
Crimp
Voltage Rating:
300V
Wire Gauge:
14 AWG
Product Codes
Mfr Part No :
320560
ECCN :
EAR99
SCHEDULE B CODE :
8536.90.4000
Documentation
Notice: EDMO Distributors, Inc. has made every effort to verify the accuracy of the codes, classifications, and part approvals listed in accordance with the Department of Commerce, U.S. Census Bureau, Bureau of Industry and Security, U.S. Department of Defense and Federal Aviation Administration. EDMO Distributors, Inc. does not assume responsibility for errors or omissions. This listing is subject to change without notice.
Warning to Exporters: EDMO Distributors, Inc. does not assume responsibility for errors with any of the Schedule B Commodity Codes or Export Control Classification Numbers in this listing. It is the Exporter's responsibility to research and supply the correct codes and classifications for the product to be exported. Some products may require an Export License in order to be exported.
