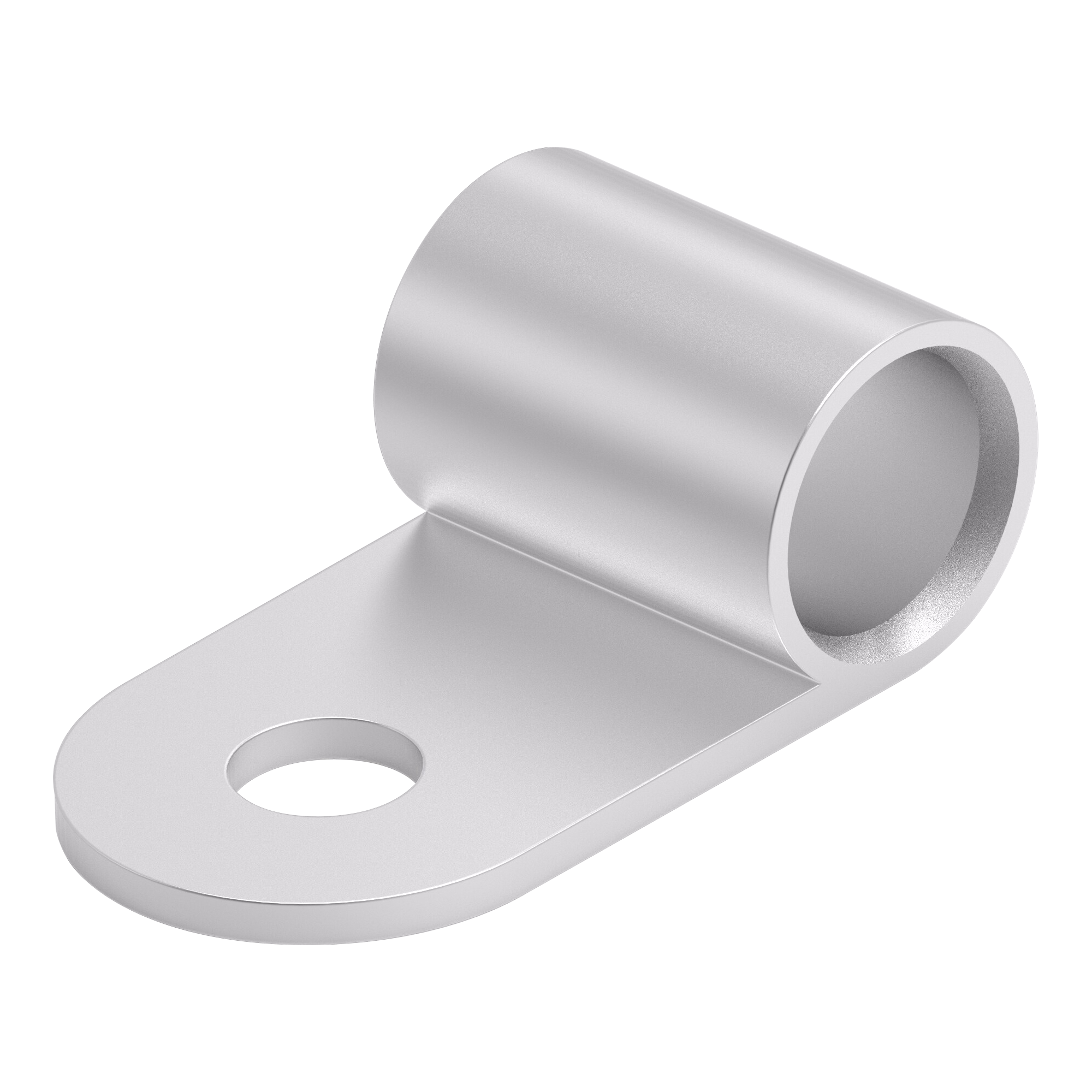

Solistrand #10 Ring Terminal | 4 AWG

RING TERMINAL/#10 stud/tab size, crimp, female, not insulated, tin plating, copper material, 7.11 mm maximum bundle diameter. PIDG series. For use with 4 gauge wire.

TE CONNECTIVITY

Call For Pricing
Available to order
EDMO # 321059
MFR Part # 321059
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Solistrand terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.


This ring terminal (EDMO# 321059) has a #10 stud size, and used on 4 AWG wire.

Features

  • Tin-plated copper conductor
  • Exceeds requirements of SAE AS7928, Type II, Class 1 and 2

Specifications

  • Contact Material:
    tin-plated copper
  • Insulation:
    none installed
  • Maximum Bundle Diameter:
    7.11 mm
  • Mounting Style:
    screw
  • Product Type:
    ring terminal
  • Series:
    Solistrand
  • Stud / Tab Size:
    #10
  • Termination Style:
    crimp
  • Wire Gauge:
    4 AWG
