PIDG #6 Nylon Off-Set Ring Terminal | 22 – 16 AWG, Red

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

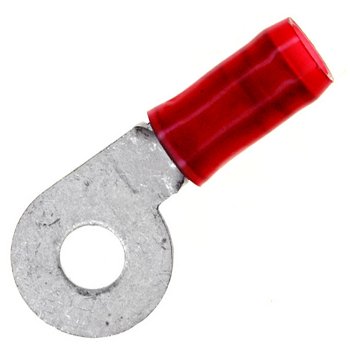

This off-set ring terminal (EDMO# 323039) has red insulation, and used on 22 – 16 AWG wire.

Specifications

• Color:
  red
• Contact Material:
  tin-plated
• Insulation:
  nylon
• Mounting Style:
  screw
• Product Type:
  ring terminal
• Stud/Tab Size:
  #6
• Termination Style:
  crimp
• Voltage Rating:
  300V
• Wire Gauge:
  22 – 16 AWG

Product Codes

• Mfr Part No
  323039

Documentation

• 323039 Envelope Drawing
