Nylon End Splice Terminal | 12 – 10 AWG, Yellow

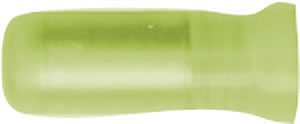

END SPLICE/Female, insulated, yellow, tin plating, copper material, nylon insulation, 12.14 mm in lenth, 6 mm maximum bundle diameter, straight angle, 300 VAC. For use with 12-10 gauge wire.

TE CONNECTIVITY

Call For Pricing

In stock

EDMO # 328309

MFR Part # 328309

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

This end splice terminal (EDMO# 328309) has yellow insulation, and used for 12 – 10 AWG wire.

Features

Yellow nylon insulation material
Tin-plated copper conductor
Meets MS25274/2 class 1 and 2

Also Purchased

Specifications

Length:

12.14 mm
Color:

yellow
Contact Material:

tin-plated copper
Insulation:

nylon
Max. Bundle Diameter:

6 mm
Mount Angle:

straight
Mounting Style:

cable mount / free-hanging
Product Type:

splice / wire cap
Termination Style:

crimp
Voltage Rating:

300V
Wire Gauge:

12 – 10 AWG

Product Codes

Mfr Part No

328309
MIL SPEC

MS25274-4
ECCN

EAR99
MIL SPEC

MS25274-4
SCHEDULE B CODE

8536.90.4000
