Product Description

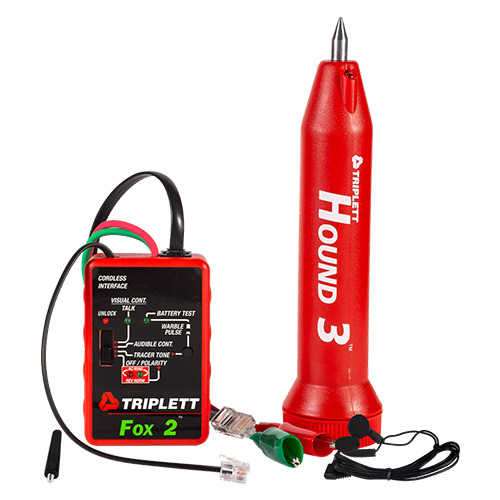

The FOX 2 and HOUND 3 wire tracing kit consists of a premium FOX 2 Tone Generator (Toner) and a newly designed HOUND 3 Inductive Amplifier (Probe). The FOX 2 is a battery operated handheld lightweight multi-function Toner that generates multiple tones, performs some basic telephone line tests (loop mA and line polarity), provides a visual and audible continuity test, and incorporates Tripletts True Trace and TripLatch tests. The HOUND 3 is a battery operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs (the HOUND and HOUND 2) with built-in LED illuminators, a bandpass filter, an earphone jack, and an easy access battery cover. An included convenient carrying case (with belt loop attachment) provides ease of use and protective storage for the FOX 2 and HOUND 3.

Features

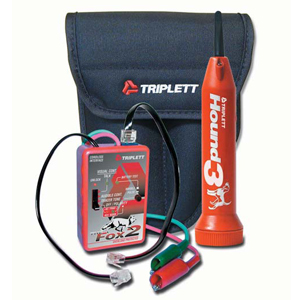

Kit Includes:
Fox 2 Deluxe Tone Generator
Hound 3 Probe Inductive Tracer
Cordura Carrying Case
Features:
Lightweight easy to use kit, constructed with high quality materials
Portable design allows you to trace wires whenever needed
Find non-energized wires in walls, ceilings, and floors
Inductive tracer with two probes indicates magnetic fields with audio and visual signals
Tracer filter helps suppress 60 Hz and high-frequency noise
Tone generator has three tones for guiding tracer to wires.
Toner can generate a signal up to 1000 feet
Fox 2 Features:
Battery operated handheld multi-function Toner
Generates multiple tones (Pulse or Warble)
Performs basic telephone line tests (loop mA, line polarity, and ringing voltage)
Provides a visual and audible continuity test
Overload protection up to 120 VAC
Integrates True Trace and TripLatch tests
“True Trace” allows for definite ID of target wire pair
Cordless Phone Interface for hands-free “True Trace”
“Trip-Latch” a unique latch testing technique using “True Trace for testing Alarm Sensors
Hound 3 Features:
Battery operated handheld lightweight Probe
Thumbwheel Sensitivity control
Signal Strength indicator LED
Built-in LED headlights to illuminate dark areas and reduce fluorescent light noise
Bandpass filter to suppresses unwanted frequencies
Earphone jack for noisy or quiet work areas

Specifications

FOX 2 SPECIFICATIONS:
Weight:

7 oz
Dimensions:

3.5 x 4.5 x 1.5 in
Operating Frequency (RF):

400 kHz to 500 kHz
Operating Frequency (AF):

800 kHz to 2400 Hz
Output Voltage (RF):

Adjustable 5 vpp to 30 vpp (open circuit)
Output Voltage (AF):

Fixed 10 vpp (open circuit)
Tracer Tone:

Warble or Pulsed, High or Low Pitch
Max Live Voltage:

250 V
Continuity Test:

Up to 5000 Ω with audible beeper
AC Voltage Test:

30 VAC to 250 VAC
DC Voltage Test:

40 VDC to 250 VDC (Positive applied to red test lead)
HOUND 3 SPECIFICATIONS:
Weight:

9 oz
Dimensions:

Diameter @ Speaker: 1-7/8 in Diameter @ Body: 1-3/8 in Length: 7.5 in
Operating Frequency (RF):

400 kHz to 500 kHz
Signal Indicators:

Speaker outputs Tracer signal and LED indicates signal strength
Earphone Jack:

Accepts 1/8 in mono or stereo earphone plug (mutes speaker)
Headlights:

2 high brightness white LEDs
Speaker:

1.5 in Mylar cone with Alnico magnet
