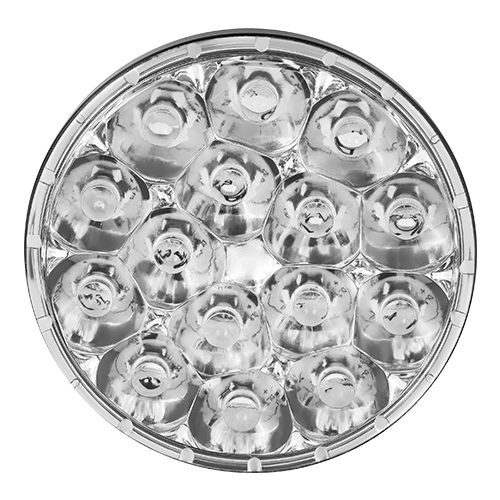

SunSpot 36 100W LED Landing Light | 14 V

Product Description

The 100-watt SunSpot 36 is the highest-performing PAR36 landing light manufactured by AeroLEDs, delivering over 200k peak candela with a broad and bright 20° × 20° beam. Compared to the 75-watt model, this wider beam geometry delivers approximately 70–80% greater usable illumination and coverage, enhancing runway definition, peripheral awareness, and depth perception on approach, rollout, and in-flight recognition.

Designed for pilots who demand maximum performance, the 100 watt SunSpot 36 Series provides superior total light output and beam quality while drawing less power than traditional incandescent lamps. Its daylight-white color temperature that reveals the true color and contrast of runway markings and terrain—eliminating the dull, amber cast of legacy bulbs. Built to withstand the rigors of flight, every SunSpot 36 light mounts directly into standard PAR36 housings for straightforward installation.

This SunSpot 36 100W LED landing light (EDMO# 36-4313) is a 14-volt unit.

Specifications

• Weight:
  11.5 oz
• Dimensions:
  4.4 x 4.4 x 2.1 in
• Mounting:
  Fits standard PAR 36 mounts
• Voltage:
  9–15 VDC, 14 VDC (Nominal)
• Current:
  6.8 A @ 14 VDC
• Power:
  100 W
• Peak Candela:
  200k (Peak)
• Beam Profile:
  20º Vertical x 20º Horizontal (@ 10% Peak)
• Lifespan:
  30,000 hours
• Lens Material:
  UV-coated polycarbonate
• Approvals:
  FAA-PMA/STC

Product Codes

• Mfr Part No
  01-1030-4313
• SCHEDULE B CODE
  8539.10.0030
