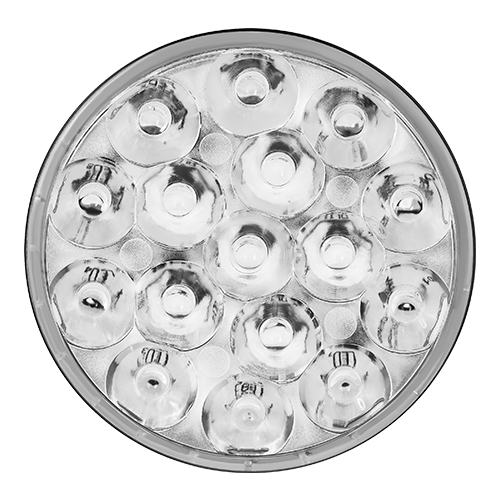

SunSpot 36 75W LED Landing Light | 14 V, WigWag

Product Description

The 75-watt SunSpot 36 LED landing light delivers over 200k peak candela with a concentrated 15° × 15° beam, optimized for pilots who prefer a tightly controlled landing light pattern. The focused beam enhances long-range visibility, approach alignment, and in-flight recognition—visible from up to 30 miles away.

Designed for efficient, reliable operation, the 75 watt SunSpot 36 Series delivers clean beam quality and a daylightwhite color temperature that reveals the true contrast of runway markings and terrain while drawing less power than traditional incandescent lamps. Built to withstand the rigors of flight, every SunSpot 36 light mounts directly into standard PAR36 housings for straightforward installation.

The H Models feature AeroLEDs’ Integrated Pulse (WigWag) Technology, improving aircraft conspicuity while operating without external controllers and drawing up to 50% less current during use.

This SunSpot 36 75W LED landing light (EDMO# 36-4509-H) is a 14-volt unit with WigWag.

Specifications

• Weight:
  11.2 oz
• Dimensions:
  4.4 x 4.4 x 2.0 in
• Mounting:
  Fits standard PAR 36 mounts
• Voltage:
  9–15 VDC, 14 VDC (Nominal)
• Current:
  5.4 A @ 14 VDC
• Power:
  75 W
• Peak Candela:
  200k (Peak)
• Beam Profile:
  15º Vertical x 15º Horizontal (@ 10% Peak)
• Lifespan:
  30,000 hours
• Lens Material:
  UV-coated polycarbonate
• Approvals:
  FAA-PMA/STC

Product Codes

• Mfr Part No
  01-1030-4509-H
• SCHEDULE B CODE
  8539.10.0030
