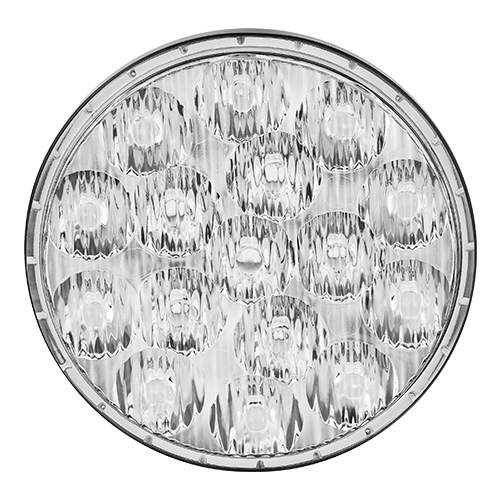

SunSpot 36 75W LED Taxi Light | 28 V

Product Description

The 75-watt SunSpot 36 LED taxi light utilizes a precision Fresnel lens to deliver a broad 20° × 40° beam optimized for taxiing, ground maneuvering, and runway visibility. The beam pattern provides effective surface illumination while maintaining defined light placement for lowspeed operations.

Designed for efficient performance, the 75 watt SunSpot 36 Series delivers consistent beam quality and a clean, daylight-white color temperature while drawing less power than traditional incandescent lamps. Built to withstand the rigors of flight, every SunSpot 36 light mounts directly into standard PAR36 housings for straightforward installation.

This SunSpot 36 75W LED taxi light (EDMO# 36-4626) is a 28-volt unit.

Specifications

• Weight:
  11.2 oz
• Dimensions:
  4.4 x 4.4 x 2.0 in
• Mounting:
  Fits standard PAR 36 mounts
• Voltage:
  18–30 VDC, 28 VDC (Nominal)
• Current:
  2.7 A @ 28 VDC
• Power:
  75 W
• Peak Candela:
  60k (Peak)
• Beam Profile:
  20º Vertical x 40º Horizontal (@ 10% Peak)
• Lifespan:
  30,000 hours
• Lens Material:
  UV-coated polycarbonate
• Approvals:
  FAA-PMA/STC

Product Codes

• Mfr Part No
  01-1030-4626
• SCHEDULE B CODE
  8539.10.0030
