PIDG #10 mm Nylon Ring Terminal | 22 – 16 AWG, Red

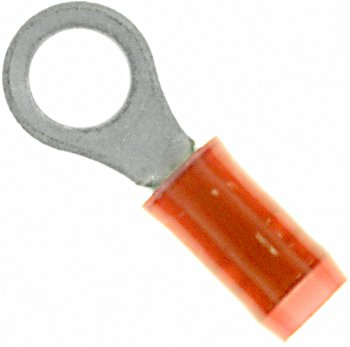

RING TERMINAL/#10 stud/tab size, female, insulation, red, tin plating, copper material, nylon insulation, 21.44 mm in length, 300 VAC. For use with 22-16 gauge wire.

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 36153
MFR Part # 36153
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.


This ring terminal lug (EDMO# 36153) has a #10 stud size, red insulation, and used on 22 – 16 AWG wire.

Features

  • Red nylon insulation material
  • Tin-plated copper conductor
  • Exceeds requirements of SAE AS7928, Type II, Class 1 and 2

Also Purchased

Specifications

  • Dimensions:
    21.44 x 7.92 mm
  • Color:
    Red
  • Contact Material:
    tin-plated copper
  • Insulation:
    nylon
  • Mounting Angle:
    straight
  • Mounting Style:
    screw
  • Product Type:
    ring terminal
  • Termination Style:
    crimp
  • Voltage Rating:
    300V
  • Wire Gauge:
    22 – 16 AWG

Related Products

Product Codes

  • Mfr Part No
    36153
  • SCHEDULE B CODE
    8536.90.4000
