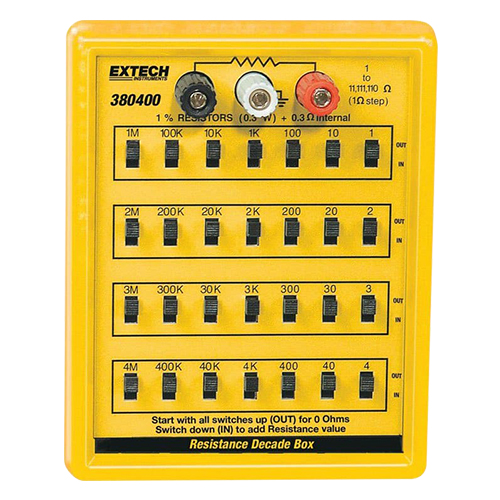

380400 Resistance Decade Box | 7 Range

Product Description

The Extech 380400 Resistance Decade Box is used for product design testing and calibration which can be substituted into a circuit and function in the place of any component with a standard value. Alternatively, it can be used to identify the best value for circuit operation then read that value from the switches. A resistor of the size indicated by the decade box switches can then be put into the circuit.

Specifications

• Weight:
  0.69 lb
• Dimensions:
  5.79 x 4.61 x 1.3 in.
• Resistance ranges:
  1 to 11,111,110Ω in 1Ω steps
• Internal resistance:
  0.3Ω
• Power:
  0.3W resistors
• Connection:
  3 binding posts
• Accuracy:
  1%
• Operating temperature:
  32ºF to 122ºF (0º to 50ºC)

Product Codes

• Mfr Part No
  380400
• ECCN
  EAR99
• SCHEDULE B CODE
  9030.31.0000

Documentation

• 380400 User Manual.pdf
