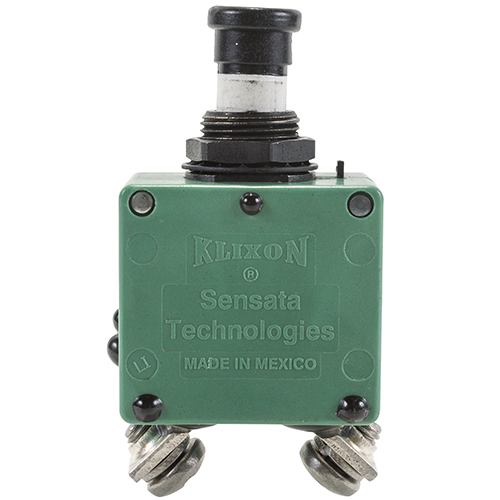

3TC2 Series Circuit Breaker | 35 Amp Rating

Product Description

The Klixon 3TC2 style circuit breaker is a miniature, lightweight, high performance, ambient temperature compensated circuit breaker. The series ratings are coordinated so any rating will trip before another rating twice its capacity in the event of a fault. These circuit breakers also offer unusually high current interrupting capacity.

The Klixon trademark continues to set the standard for lightweight configurations and offers the endurance and reliability required by exacting military specifications.

Includes hardware.

Specifications

• Weight: 37 grams max
• Vibration: 10G minimum 50-500 Hz
• Mechanical Shock: 50G
• Acceleration: 10G
• Overload Cycling: 100 Cycles at 200% rating
• Amps : 35

Product Codes

• Mfr Part No
  3TC2-35
• MIL SPEC
  MS14105-35
• ECCN
  EAR99
• MIL SPEC
  MS14105-35
• NSN
  5925-01-586-6551
• SCHEDULE B CODE
  8536.20.0020
