Heavy Duty Light Meter | PC Interface


EXTECH

EDMO#: 407026

MFR#: 407026

Call for Pricing

No Stock

Description

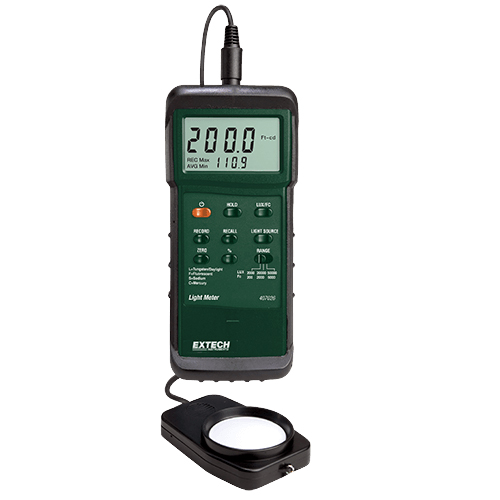

The 407026 Heavy Duty Light Meter has 4 lighting type settings for enhanced accuracy (Tungsten/Daylight, Fluorescent, Sodium, Mercury). Additional features include Data Hold, Min/Max/Average, Auto power off and a % reading of the differential from a reference point. Built-in RS-232 interface with optional Data Acquisition Software and Data logger.

Features

Includes:

  • 9V battery
  • Light sensor with 45 in. cable
  • Protective cover
  • Holster with stand

Features:

  • Microprocessor assures maximum accuracy plus special functions
  • Super large 1.4 (1999 count) LCD display
  • % displays differential from reference point
  • ZERO Re-Calibration
  • Utilizes precision photo diode and color correction filter
  • Cosine and color corrected measurements
  • 4% accuracy is enhanced by selecting lighting type (Tungsten/Daylight, Fluorescent, Sodium, Mercury)
  • Record/Recall MIN, MAX and AVG readings
  • Data Hold plus Auto shut off
  • Built-in RS232 serial interface

Interface Options (optional):

  • Optional Windows® Data Acquisition Software and serial cable enable user to display and capture readings on a PC, and set time intervals and alarms
  • Optional battery operated Datalogger module stores over 8000 readings for later transfer to a PC

Specifications

Weight:
1.6 lb

Dimensions:
7 x 2.9 x 1.3 in.

FC range:
200, 2000, 5000Fc

Lux range:
2000, 20000, 50000Lux

Max resolution:
0.1Fc/1Lux

Basic accuracy:
±4%FS

Cosine & color corrected:
Yes

PC interface:
Yes

Product Codes

Mfr Part No :

407026

SCHEDULE B CODE :

9031.80.8080
