CP91-20PW Power Cable | U9100, 20ft

Product Description

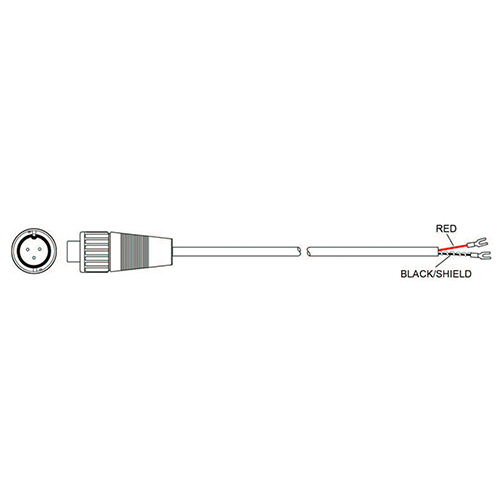

The CP91-20PW is a cable to provide power to the U9100 Digital Intercom System. This cable is 20-feet in length with a connector and the other end must prepared by the installer.


Must be connected to power supplying 10 amps with voltage between 11 VDC — 30 VDC. The included David Clark 10-amp fuse (41090G-22) is recommended.

Specifications

• Length:
  20 ft
• Circuit Breaker:
  10 amp
• Voltage:
  11 VDC — 30 VDC
• Temperature:
  -20°C to 70°C

Product Codes

• Mfr Part No
  40892G-20
• SCHEDULE B CODE
  8518.90.3000
