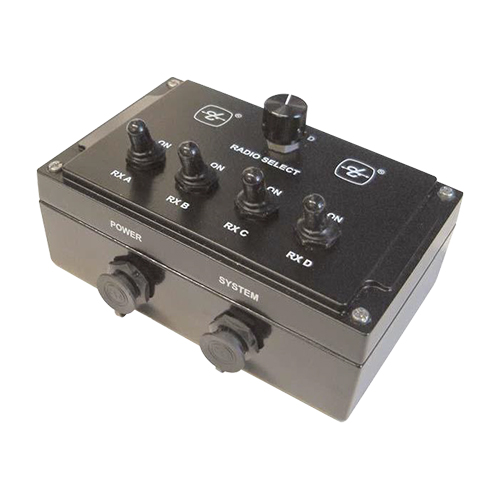

Multi-Radio Interface Module

Multi-Radio Interface Module

DAVID CLARK COMPANY

Call For Pricing
Available to order
EDMO # 41021G-01
MFR Part # 41021G-01
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Multiple-Radio Interface Module (M-RIM) is a weather-resistant radio interface designed for the marine environment. It is a companion product to the David Clark Series 3800, 9500, 9800, and Solo product lines, intended to increase the number of radios connected to the host system. The M-RIM allows up to four mobile radios to be connected to one radio port on the host system.

Features

  • Interface for up to four mobile radios
  • Receive audio from all radios is summed together
  • Individual toggle switches for separate radio receive on/off
  • Internal audio level adjustments for each radio
  • Four-position rotary switch to select radio transmit
  • Surface mount kit included

Also Purchased

Specifications

  • Input Voltage:
    11-30 VDC
  • Input current:
    2 A @ 12VDC (max)
  • RX audio input:
    8.5 V RMS (max)
  • TX audio output:
    700 mV RMS (max)

Related Products

Product Codes

  • Mfr Part No
    41021G-01
