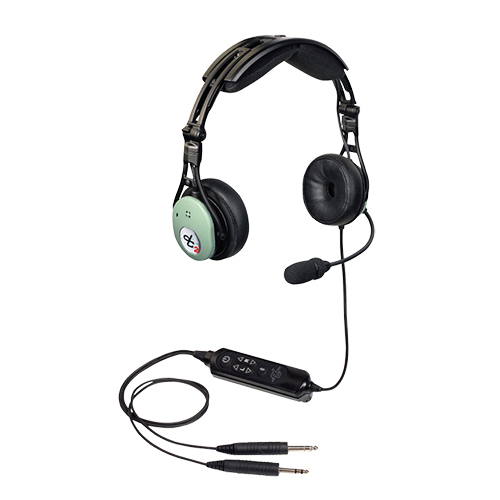

DC PRO-X2 Aviation Headset | Dual Ear, ENC, Dual Plug

DC PRO-X2 Aviation Headset | Dual Ear, Dual Plug, ENC

DAVID CLARK COMPANY

Call For Pricing

Available to order

EDMO # 43105G-10

MFR Part # 43105G-10

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The DC PRO-X2 true crossover headset is ideal for both general aviation and commercial pilots that prefer the unmatched comfort of a lightweight, rest-on-ear design. The next generation DC PRO-X2 Series retains all the comfort and performance features of the original, pilot-acclaimed DC PRO-X headsets; now with enhanced ANR and audio performance. A fully adjustable suspension assembly is integrated into the headband for a personal fit. Swivel hinge stirrups disperse clamping pressure, allowing the headset to conform to the users head. Hybrid ENC technology provides active noise reduction (ANR) with feed-forward/feed-back technology, and an external microphone on the dome picks up outside noise for superior noise attenuation.

Version (EDMO# 43105G-10) is a dual ear ENC headset with M-5B electret microphone and a dual plug.

Features

Enhanced Auto-Shutoff feature virtually eliminates accidental loss of battery power
Automatic Gain Control (AGC) for optimum ANR performance in changing, high noise conditions
Soft, Outlast® technology, heat absorbing head pad keeps cool and comfortable in flight
Hybrid ENC technology for excellent active noise reduction
Plush, rest-on-ear (supra aural), leatherette ear seals reduce heat buildup
Rugged, yet lightweight alloy suspension, less than 8 ounces
Compact control module with intuitive, multi-function control pad
FAA TSO-C139a Approved

Specifications

Weight w/o cable:

7.5 oz. (215 g)
Ear coupling:

On-the-ear
Hardware:

Lightweight Alloy
Connector Type:

Standard dual GA plugs
Connection Cable:

0.155” (4-mm) OD shielded cable, length ~ 6.9 ft. (2.1 m)
Battery life:

Up to 50 hours (2 AA batteries)
Operating temperature:

-20°C to +55°C
Operating voltage:

3VDC (2x AA)
Dome type:

ABS
Characteristic SPL:

91 dB SPL (1 kHz, 1 mW) @ maximum volume nominal
Contact pressure:

0.6 lb. (2.7 N)
ENC peak attenuation:

30dB @ 150Hz
ENC attenuation range:

20Hz―1KHz
Total harmonic distortion (THD):

< 1% - 110 dB SPL (300 - 3,000 Hz)
Ear Transducer principle:

Dynamic
Ear Impedance:
Specification

600 Ω mono / 1200 Ω stereo (each ear)
Ear Freq Response:

12 - 15,000 Hz
Microphone principle:

Pre-polarized condenser microphone (electret), noise cancelling
Mic Impedance:

150Ω nominal
Mic Sensitivity:

400mV+/-6dB into 150Ω load @ 1kHz for 114 dB SPL input
Mic Freq Response:

150 - 8,000 Hz
Mic DC Supply V:

8-16V, not polarity sensitive
Source Resistance:

470Ω
