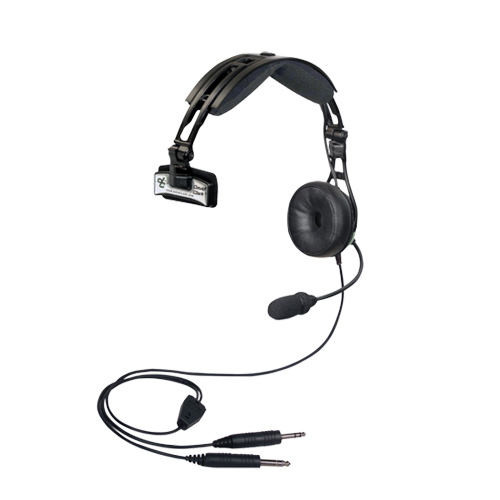

DC PRO-2 Aviation Headset | Single Ear, Dual Plug, Passive

DAVID CLARK COMPANY

Call For Pricing

Available to order

EDMO # 43106G-06

MFR Part # 43106G-06

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The DC PRO-2 passive noise-attenuating headset combines outstanding comfort, performance and durability in a lightweight, rest-on-ear design. These headsets are ideal for commercial pilots that fly low-noise aircraft where Electronic Noise Cancelling ANR technology is not required. DC PRO-2 headsets provide enhanced audio quality and clear, crisp voice transmission utilizing advanced, noise-cancelling electret microphones.

Features

Volume control located on ear dome
Full flex boom for precise microphone placement
High performance, electret microphone with enhanced noise cancelling
Rugged, yet lightweight magnesium alloy headband and suspension is adjustable for personalized fit
5-ft. straight cord with dual plugs
Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool and eliminates 'hot spots'
Soft foam temple pad and plush leatherette ear seal provide maximum comfort

Specifications

Ear coupling:

Single On-the-ear
Hardware:

Lightweight Alloy
Connector Type:

Standard dual GA plugs
Connection Cable:

0.130” (3.3 mm) O.D. shielded cable, length ~ 5 ft. (1.5 m)
Operating temperature:

-20°C to +55°C
Microphone DC supply voltage:

8 – 16 Volts, not polarity sensitive
Dome type:

ABS
Characteristic SPL:

91 dB SPL (1 kHz, 1 mW) @ maximum volume nominal
Contact pressure:

0.6 lb. (2.7 N)
Total harmonic distortion (THD):

< 1% - 110 dB SPL (300 - 3,000 Hz)
Ear Transducer principle:

Dynamic
Microphone principle:

Pre-polarized condenser microphone (electret), noise cancelling
Mic Impedance:

150Ω nominal
Mic Sensitivity:

400mV+/-6dB into 150Ω load @ 1kHz for 114 dB SPL input
Mic Freq Response:

150 - 8,000 Hz
Source Resistance:

470Ω
