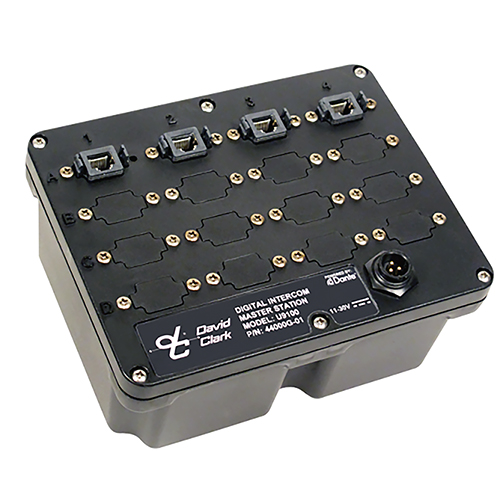

Model U9100 Master Station
DAVID CLARK COMPANY
EDMO#: 44000G-01
MFR#: 44000G-01
Description
The U9100 Master Station is the heart of the digital intercom system offering a high performance ethernet/IP modular design for providing interface connectivity for two-way radios and other common ancillaries, as well as other existing networks. This master station is highly configurable and adaptable to a broad range of diverse applications. Also, the system is reliable, flexible, and simple to setup.
Features
- Dante™ enabled digital architecture provides a configurable voice and data network between all system users whether they use two-way radios, sound and data sources, IP networks, or other Dante™ enabled devices
- Provides a multi-purpose communications network for multiple devices and channels
- The modular design permits the installation of up to three additional interface modules for expanding system capabilities and connectivity options
- Rugged, marine grade design offers protection against ingress, salt, fog, corrosion, temperature, and shock and vibration for reliable performance
- Flexible installation allows for surface or rack mount options are available
Specifications
Weight:
40 oz (1.1 kg)
Dimensions:
8.25 x 6.5 x 3.875 in
Intercom Connector:
RJ-45 type
Power Requirements:
11 VDC — 30 VDC (10A, max. depends on configuration)
Power Distribution:
PoE (802.3af)
System Cable Type:
CAT5e or CAT6
Mounting Method:
via M9100FM (Rack-Mount) or provided surface-mount kit
Enclosure Material:
Polyethylene
Ingress protection:
IP67, per IEC 60529, with all add-in cards properly installed
Temperature:
-40°F to 185°F (-40°C to 85°C), operating
-40°F to 158°F (-40°C to 70°C), storage
Aggravated Humidity:
Per MIL-STD-810G
Functional Shock:
Per MIL-STD-810G
Operational Vibration:
Per MIL-STD-810G
Blowing Sand:
Per MIL-STD-810G
Blowing Dust:
Per MIL-STD-810G
Salt Fog:
Per MIL-STD-810G
Immunity to DC Power Line Transients:
Per EN 301 489-1 (ISO 7637-2)
Radiated and Conducted Emissions:
Per EN 301 489-1, FCC Part 15
Electrostatic Discharge:
Per EN 301 489-1
Radiated Immunity:
Per EN 301 489-1
Electrical Immunity:
Per EN 301 489-1
Electrical Fast Transient Burst:
Per EN 301 489-1
Conducted Immunity:
Per EN 301 489-1
Product Codes
Mfr Part No :
44000G-01
SCHEDULE B CODE :
8518.90.3000
