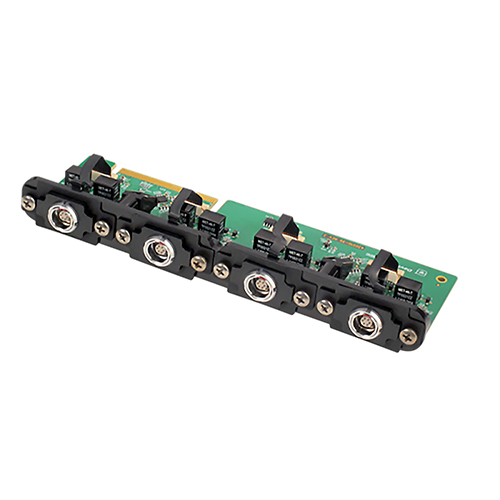

Model U9104 Quad Radio Expansion Card | 4 Mobile Radios
DAVID CLARK COMPANY
EDMO#: 44003G-03
MFR#: 44003G-03
Description
The U9104 Quad Radio Card Module provides users connectivity and software-enabled access up to four mobile radios to provide a significant expansion capabilities in on efficient interface. This device features a water-proof, shock- and vibration-resistant modular design to ensure reliability for critical communications.
The U9104 Quad Radio Card (EDMO# 44003G-03) expands interface capabilities for up to four mobile radios.
Features
- Expands interface capabilities for up to four radio connections
- Configurable software parameters allows users to define who hears what, as well as individual transmission capabilities
- A modular design and intuitive configuration allows for system expansion and simplified repair or replacement — maximizing system uptime
- IP68 rated, waterproof connectors offer reliability in demanding environmental conditions and situations
- Stainless steel installation hardware secures to the U9100 Master Station while providing suitable corrosion resistance in harsh marine environments
- Shock and vibration proof construction ensures reliability for critical communication during severe mobile applications
- Excellent dust, water, and ingress protection while mated provides worry-free installations when operating in demanding environments
Specifications
Weight:
4 oz (113 g)
Dimensions:
5.125 x 3.75 x 2.5 in
System Connection:
installation into lid of U9100 card slot interface to main PCB
Power:
PoE (802.3af), from U9100
Radio Connectivity:
Via C91-20RD radio interface cable (4 each, max.)
Mounting Method:
IP67 seal to U9100 lid via stainless steel sealed screws
Connector Materials:
Copper alloy (shell, nut, ground pin and contacts); chromium-plating (shell, nut); gold plating over nickel (contacts); tin plating (ground pin), synthetic resin insulator and synthetic rubber gaskets
Temperature:
-40°F to 185°F (-40°C to 85°C), operating
-40°F to 158°F (-40°C to 70°C), storaage
Compliance:
Ingress Protection:
IP-67, per IEC 60529 as properly installed (connectors, IP68)
Aggravated Humidity:
Per MIL-STD-810G
Functional Shock:
Per MIL-STD-810G
Operational Vibration:
Per MIL-STD-810G
Blowing Sand:
Per MIL-STD-810G
Blowing Dust:
Per MIL-STD-810G
Salt Fog:
Per MIL-STD-810G
Immunity to DC Power Line Transients:
Per EN 301 489-1 (ISO 7637-2)
Radiated and Conducted Emissions:
Per EN 301 489-1, FCC, Part 15
Electrostatic Discharge:
Per EN 301 489-1
Radiated Immunity:
Per EN 301 489-1
Electrical Fast Transient Burst:
Per EN 301 489-1
Conducted Immunity:
Per EN 301 489-1
Product Codes
Mfr Part No :
44003G-03
SCHEDULE B CODE :
8518.90.3000
