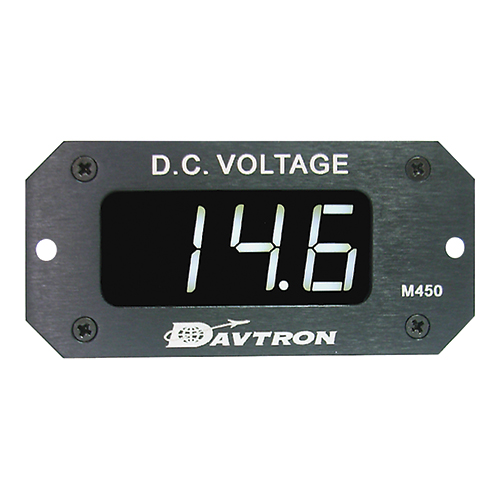

Model 450 Digital Voltmeter | White LED Display

Model 450 Digital Voltmeter | White LED Display

DAVTRON

EDMO#: 450-WHT

MFR#: M450-WHT

Description

The Davtron Model 450 voltmeter is a small and lightweight voltmeter that precisely monitors the aircraft voltage. The 450 series offers pilots an accurate reading of battery capacity during a low voltage condition. The Model 450 provides pilots with a better understanding about the reliability of the aircraft electrical system.

Features

This Model 450 (EDMO# 450-WHT):

  • White LED display
  • Installation eligibility: Beech 35, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, 35-33, 35-33A, with STC SA4381WP or SA4193 installed

Features:

  • Requires minimal panel space
  • Lightweight — only 3 oz
  • Automatic dimming
  • Sunlight-readable display
  • Lasar engraved faceplate
  • Voltage with flashing alarm
  • FAA-PMA approved

Specifications

Weight:
3 oz

Dimensions:
2.9 x 1.4 x 1.85 in

Panel Cutout:
2.4 x 1.3 in

Mounting Hole Cutout:
2.65 in, tap for 4/40 (typical 2 places)

Range:
8V to 32V

Input Voltage:
14V to 28V

Resolution:
0.1V

Input Current:
150 mA, maximum

Temperature:
-25°C to 60°C

Accuracy:
±1% of full scale

Product Codes

Mfr Part No :

M450-WHT

ECCN :

7A994

PMA :

PQ1062NM

SCHEDULE B CODE :

9030.39.0100
