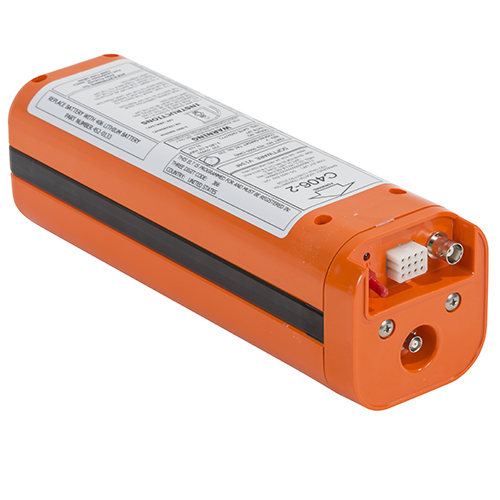

C406-2 HM ELT | Dual Output, Helicopter
ACR ELECTRONICS / ARTEX
EDMO#: 453-5001
MFR#: 453-5001
Hazmat charges may apply
Description
The C406 series Emergency Locator Transmitter is an automatic fixed type ELT which transmits on 121.5, 243.0, and 406 MHz frequencies. In the event of a crash the ELT automatically activates transmitting the standard swept tone on 121.5 and 243.0 MHz. It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.
Model C406-2 HM is a dual BNC/TNC output ELT with a multi-axis G-switch for helicopter applications. Compatible with optional Nav Interface.
Features
Version 453-5001 includes:
- C406-2 HM ELT
- Lithium battery
Features:
- Operates on 121.5, 243, and 406 MHz frequencies for global coverage
- RF output
- Rod, whip, and blade antenna compatible
- Compatible with aircraft navigation system with optional interface
- Automatic or manual activation
- 5-year lithium battery
- Self tests: G-Switch Enabled, 406 MHz Power Antenna/Coax Connection, Position Data Present, and Low Battery
Specifications
Weight:
3.16 lb (1.43 kg), ELT transmitter
4.24 lb (1.9 kg), total weight with mounting frame assembly
Dimensions:
11.74 x 3.9 x 3.82 in, with mounting hardware installed
Model:
C406-2 HM
Antenna:
Not included
Operating Frequencies:
406 MHz, 121.5 MHz, 243 MHz ±0.005% (A3X)
Output Power:
406 MHz: 5W (520 ms/50 sec) for 24 hours @ -20°C to 55°C
121.5/243.0 MHz: 100 mW min (+20 dBm) for 50 hours @ -20°C to 55°C
Output Connector:
BNC Female (121.5/243.0)
TNC Female (406 MHz)
Activation:
Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or 12.5 G (+/- 1 G) 5-Way HM G-Switch or Manual Activation
Battery:
5-year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133
Temperature Certified to:
Operating: -20°C to 55°C, Storage: -55°C to 85°C
Remote Switch:
Not included
Product Codes
Mfr Part No :
453-5001
ECCN :
7A994
PROAPP :
PT1113CE/PQ1113CE
PROG REQ :
C406Programming
SCHEDULE B CODE :
8526.91.0010
TSO :
C126
UN ID# :
3091, Lithium Metal Batteries contained in equipment
