DGL-1 Programming Dongle | Kit

ACR ELECTRONICS / ARTEX

Call For Pricing

Available to order

EDMO # 455-401001

MFR Part # 455-4010-01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

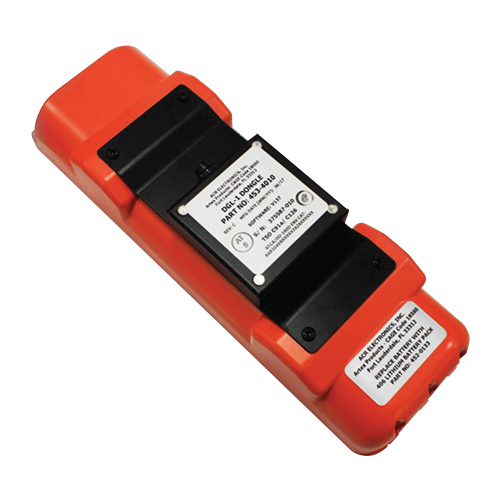

With the Artex DGL-1 programming dongle, fleet operators will be able to efficiently transfer ELTs from aircraft to aircraft. The DGL-1 is a perfect match for the operator who wants auto-programming capability, but does not desire the position data function of the Artex ELT/NAV Interface. The DGL-1 comes attached to a top cover, which, along with the dongle, remain with the aircraft. When an ELT is installed, the DGL-1 re-programs the ELT with the aircraft’s 24-bit address

Features

Designed specifically for fleet operators
Existing C406-1/2, G406-4 and B406-4 installations are easily upgraded
Greatly simplifies maintenance and reduces downtime
Installation becomes part of the permanent AC harness
Hardwire option for fleet aircraft identification
Ensures correct ELT programming for spares

Specifications

Weight:

11.5 oz (360 g)
Dimensions:

2.5 x 6.1 in (64 x 155 mm)
Input Power:

28 VDC ± 10 VDC
Output Power:

5.6 VDC ± 0.3 VDC (powers ELT for reprogramming only)
Operating Temperature:

-20 to 55°C
Storage Temperature:

-55 to 85°C
Compatible Artex ELT Models:

110-406 NAV, 110-406HM NAV, 110-406ED NAV, B406-2, B406-4, C406-1, C406-1HM, C406-2, C406-2HM, G406-1, G406-2, G406-4
