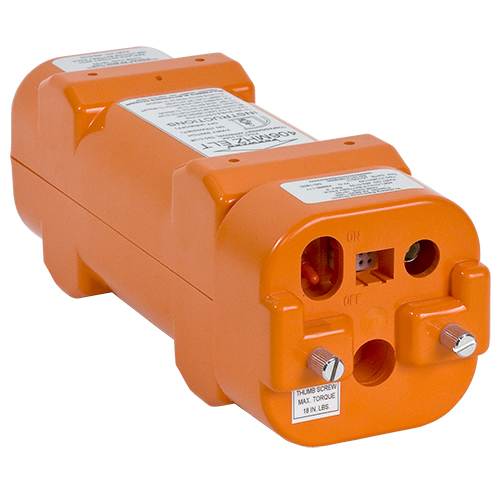

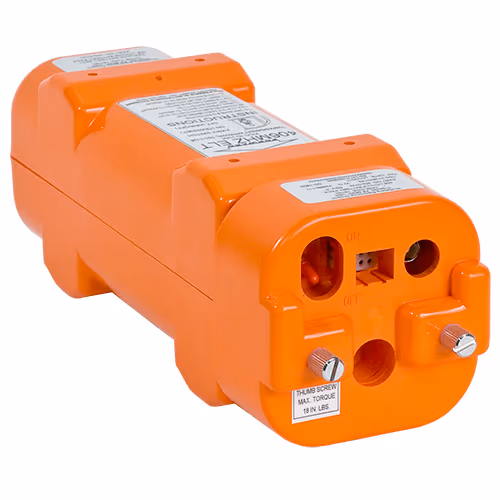

C406-1 ELT System | Single Output, Blade Ant, Remote Switch

ACR ELECTRONICS / ARTEX

Call For Pricing

In stock

EDMO # 455-5015

MFR Part # 455-5015

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The C406 series Emergency Locator Transmitter is an automatic fixed type ELT which transmits on 121.5, 243.0, and 406 MHz frequencies. In the event of a crash the ELT automatically activates transmitting the standard swept tone on 121.5 and 243.0 MHz. It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.

Model C406-1 is a single BNC output ELT with an automatic G-switch for fixed wing applications. Compatible with optional Nav Interface.

Features

Version 455-5015 includes:
C406-1 ELT
Lithium battery
Install kit (455-7421)
Mounting tray (452-5050)
Top cover (452-3052)
Mounting cap (452-5052)
Buzzer (130-4004)
Remote Switch/Install kit (455-6196)
Tri-band blade antenna (110-340)
Coax cable
Features:
Operates on 121.5, 243, and 406 MHz frequencies for global coverage
RF output
Rod, whip, and blade antenna compatible
Compatible with aircraft navigation system with optional interface
Automatic or manual activation
5-year lithium battery
Self tests: G-Switch Enabled, 406 MHz Power Antenna/Coax Connection, Position Data Present, and Low Battery

Specifications

Weight:

3.16 lb (1.43 kg), ELT transmitter 4.24 lb (1.9 kg), total weight with mounting frame assembly
Dimensions:

11.74 x 3.9 x 3.82 in, with mounting hardware installed
Model:

C406-1 Antenna: Blade
Operating Frequencies:

406 MHz, 121.5 MHz, 243 MHz ±0.005% (A3X) Output Power: 406 MHz: 5W (520 ms/50 sec) for 24 hours @ -20°C to 55°C 121.5/243.0 MHz: 100 mW min (+20 dBm) for 50 hours @ -20°C to 55°C Output Connector: BNC Female (121.5/243.0/406 MHz) Activation: Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or Manual Activation
Battery:

5-year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133 Temperature Certified to: Operating: -20°C to 55°C, Storage: -55°C to 85°C Remote Switch: ON/ARM
