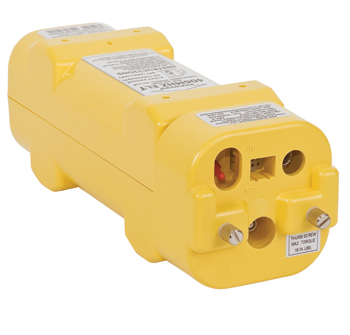

G406-4 ELT System | Single Output, Whip Antennas, Remote Switch

ACR ELECTRONICS / ARTEX

Call For Pricing

Available to order

EDMO # 455-5044

MFR Part # 455-5044

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The G406-4 transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz). The system was designed for use with the general aviation market in mind. The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. The G406-4 also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.

The G406-4 has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests.

Features

This variant of the G406-4 ELT (EDMO# 455-5044) includes:
G406-4 transmitter (453-5012)
Install Kit (455-7421)
NAV Remote Switch Install Kit (455-6196)
Remote Switch (345-6196-04)
Mounting Tray (452-0227)
Whip Antenna with Inductor (110-324)
Whip Antenna (110-329)
Buzzer (130-4004)
LiMnO2 5 year battery
Features:
Operates on 121.5, 243, and 4-6 MHz frequencies with worldwide coverage
Compatible with the ELT to navigation interface, which enables latitude and longitude data to be transmitted as part of the 406 MHz message
Equipped with a Lithium-Ion battery with a five-year life
System versions listed below included install kits

Specifications

Weight:

3 lb 5.8 oz
Dimensions:

11.7 x 3.9 x 3.82 in (transmitter with mounting hardware)
Antennas:

Whip Antenna (110-329) Whip Antenna with Inductor (110-324)
Operating frequencies:

406 MHz, 121.5/234 MHz ± 0.005% (A3X)
Output power:

406 MHz: 5 W ± 2 dB (520 ms/50 sec) for 24 hours @ -20°C 121.5/243.0 MHz: 100 mW minimum (+20 dBm) for 50 hours @ -20°C
Output connector:

BNC Female (121.5/243 MHz) TPS Female (406 MHz)
Activation:

Automatic by 4.5 ft/sec (2.3 G) Primary G-Switch manual activation
Battery:

5-year, Lithium-Ion (LiMn02, solid cathode)
Temperature certified to:

Operating: -20C to 55°C Storage: -55°C to 85°C
Self test:

G-Switch enabled 406 MHz power antenna/coax connection position data present low battery
Remote switch:

On/Arm
Certifications:

TSO C126, ETSO 2C126 Cospas/Sarsat approved Transport & Industry Canada approved
