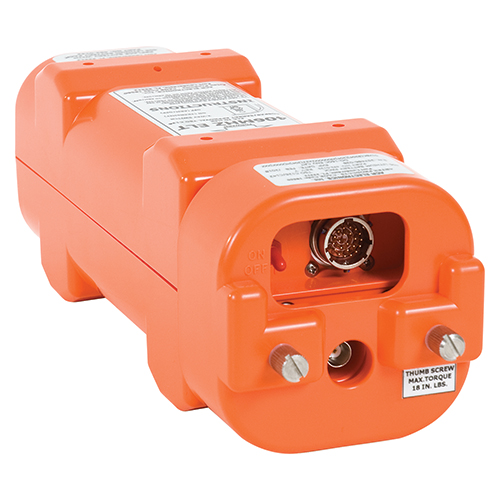

C406-N ELT System | Single Out, Nav, Rod Ant, NVIS Remote Switch

C406-N ELT System | Single Out, Nav, Rod Ant, NVIS Remote Switch

ACR ELECTRONICS / ARTEX

Call For Pricing
Available to order
EDMO # 455-5071
MFR Part # 455-5071
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The C406 series Emergency Locator Transmitter is an automatic fixed type ELT which transmits on 121.5, 243.0, and 406 MHz frequencies. In the event of a crash the ELT automatically activates transmitting the standard swept tone on 121.5 and 243.0 MHz. It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.

This C406-N (EDMO# 455-5071) is a single BNC output ELT with an automatic G-switch for fixed wing applications. Connects directly to aircraft navigation. Capable of custom programming with optional adapter.

Features

  • Version 455-5071 includes:
  • C406-N ELT
  • Lithium battery
  • Install kit (455-7422)
  • Mounting tray (452-5050)
  • Top cover (452-3052)
  • Mounting cap (452-5066)
  • Buzzer (130-4004)
  • Remote Switch/Install kit (455-0027)
  • Rod antenna (110-338)
  • Coax cable
  • Features:
  • Operates on 121.5, 243, and 406 MHz frequencies for global coverage
  • RF output
  • Rod, whip, and blade antenna compatible
  • Compatible with aircraft navigation system, supports ARINC 429
  • Automatic or manual activation
  • 5-year lithium battery
  • Self tests: G-Switch Enabled, 406 MHz Power Antenna/Coax Connection, Position Data Present, Low Battery, and Presence of Navigation Data

Specifications

  • Weight:
    3.16 lb (1.43 kg), ELT transmitter 4.24 lb (1.9 kg), total weight with mounting frame assembly
  • Dimensions:
    11.74 x 3.9 x 3.82 in, with mounting hardware installed
  • Model:
    C406-N
  • Antenna:
    Rod
  • Operating Frequencies:
    406 MHz, 121.5 MHz, 243 MHz ±0.005% (A3X)
  • Output Power:
    406 MHz: 5W (520 ms/50 sec) for 24 hours @ -20°C to 55°C 121.5/243.0 MHz: 100 mW min (+20 dBm) for 50 hours @ -20°C to 55°C
  • Output Connector:
    BNC Female (121.5/243.0/406 MHz)
  • Activation:
    Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or Manual Activation
  • Battery:
    5-year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133
  • Temperature Certified to:
    Operating: -20°C to 55°C, Storage: -55°C to 85°C
  • Remote Switch:
    ON/ARM - NVIS

Product Codes

  • Mfr Part No
    455-5071
  • ETSO
    2C126
  • PROG REQ
    C406NProgramming
  • TSO
    C126, C91a
  • UN ID#
    3091, Lithium Metal Batteries contained in equipment
