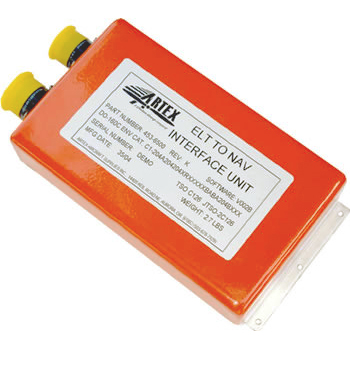

ELT to NAV Interface | 24-bit Programming, Install kit

ACR ELECTRONICS / ARTEX

Call For Pricing

Available to order

EDMO # 455-6500

MFR Part # 455-6500

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This ELT to NAV interface connects the aircrafts Flight Management Computer (FMC) or GPS receiver with an Artex 406MHz Series of ELTs (G406-4, C406-1, C406-2, C406-1 HM, C406-2 HM). This ELT navigation interface is capable of providing information such as type of aircraft, owner, emergency contacts, country code, aircraft ID or ELT serial number, ELT manufacturer, and latitude and longitude position when properly registered.

Advanced features allow users to customize the 24-bit address (mode S number) that is assigned to the aircraft eliminating the need to reprogram an ELT before installing it into a different aircraft. The ELT/NAV interface meets TSO C126 and JTSO-2C126 requirements as a 406 MHz ELT system component.

Features

Includes install kit
Works with 28V aircraft systems only
Allows the ELT to transmit latitude and longitude of the aircraft
Connects C406 and G406 series ELTs to the aircraft Flight Management Computer or GPS receiver
Programs ELT with the 24-bit address of the aircraft
Compatible with Garmin, UNSD, ARNAV, IIMorrow, Bendix King systems

Specifications

Weight:

2.7 lb (1.2 Kg)
Dimensions:

9.25 x 5 x 1.95 in
Vibration:

10 G(5 Hz to 2000 Hz)
Shock Test:

500 G @ 4 mSec
Crash Worthiness:

100 G @ 23 mSec
Altitude:

50,000 FT
Impact:

220 PSI (25 Kg from 6 in)
Crush:

1000 lb
Auto Reprogramming:

24-bit aircraft address (Mode S number)
Interface:

ARINC 429- all RS-232- 9600 baud, parity: none, data bits: 8, stop bits: 1, STX & ETX required, ""A"" identifier for lat; ""B"" identifier for long
NAV Systems:

GPS-loran-inertial NAV-FMC
Operating Temperature:

-20°C to +55°C
Voltage requirements:

+28VDC ±5VDC
Current Draw:

300mA maximum
