IFF-45TS Test Set | Option 8 KIT/KIR Adapter

VIAVI

Call For Pricing

Available to order

EDMO # 45TSOPT8

MFR Part # 89879

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

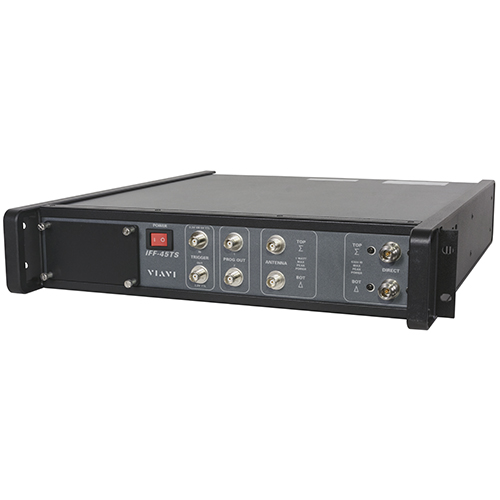

The IFF-45TS Transponder/Interrogator/TACAN Bench Test Set is an RF signal simulator that provides support for AIMS Mark XIIA transponders and interrogators. It operates under remote control from a computer or ATE system and provides versatile signal generation and measurement capability of Mark XIIA system signals in bench and over-the-air applications.

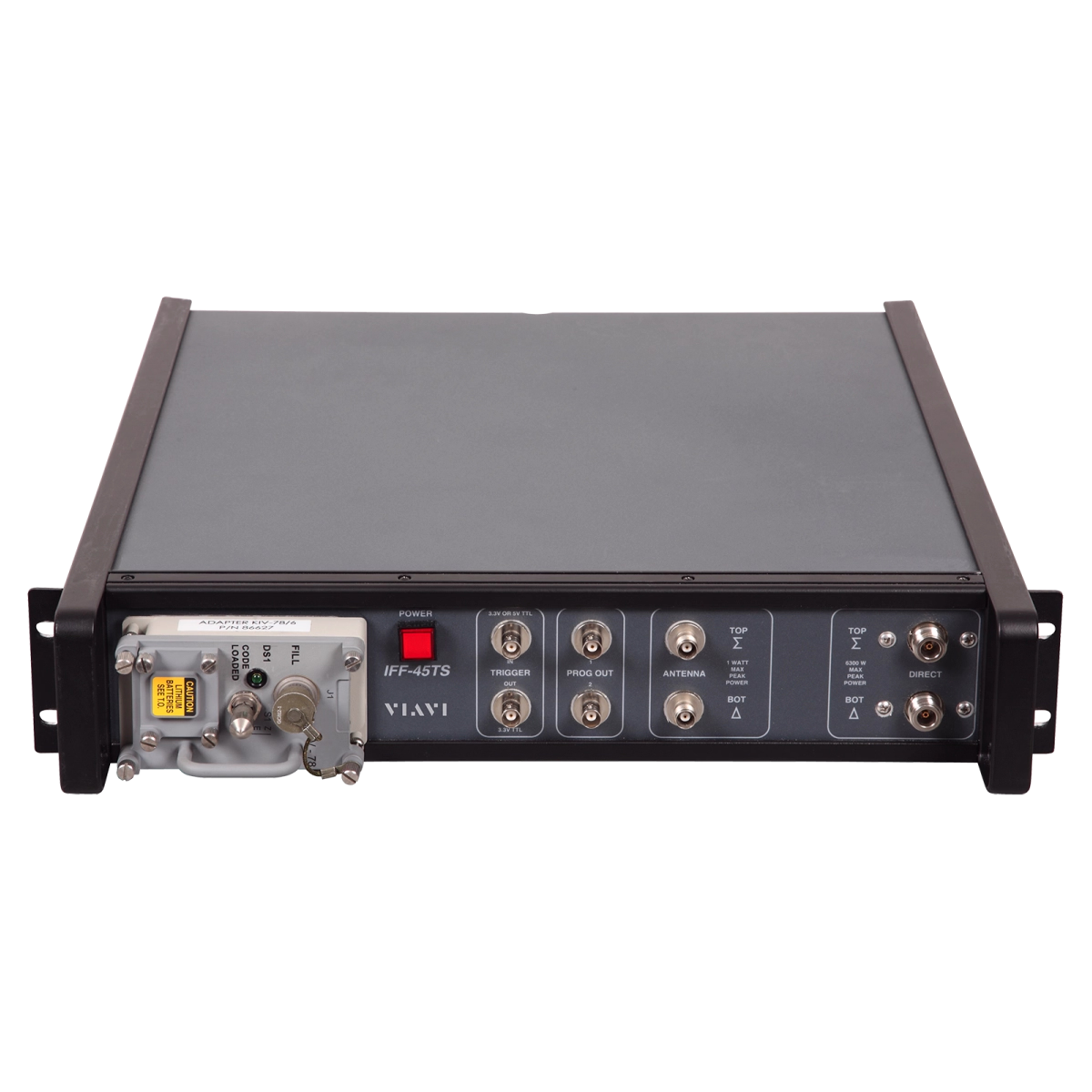

Version 45TSOPT8 includes KIT/KIR Adapter option.

Features

MK XIIA AIMS certified for Level 1 and Level 2
Supports DOD AIMS 04-900A Option A (KIV-78) and Option B (KIV-77)
Dual I/O for diversity testing of transponders or SUM/DIFFERENCE on interrogators
Separate connections for direct or over-the-air testing
Software defined radio design allows waveform flexibility and future growth potential
Dual signal generator design allows coordinated signal production for interference and echo testing
Remote interfaces consist of RS-232, Ethernet and GPIB
Aeroflex GUI allows easy access to test features
Industry wide use in development and end item testing of transponders and interrogatorsADS-B Out (DO-260B) test capability
