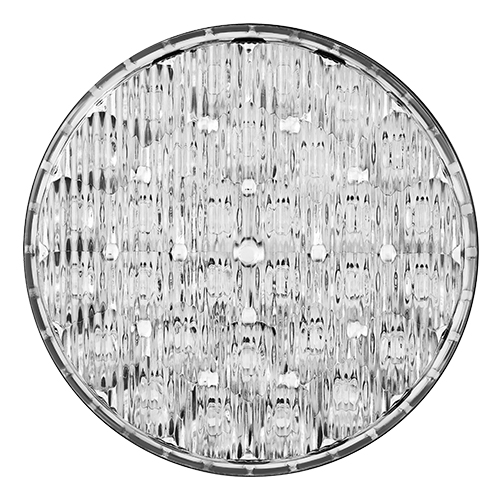

SunSpot 46-4000 LED Taxi Light | 28 V

Product Description

The SunSpot 46 LED taxi light features a specially designed Fresnel lens that delivers a broad 20° × 50° beam–optimized for taxiing, ground maneuvering, and runway visibility in all conditions. Designed for pilots who demand maximum performance, the SunSpot Series provides superior lumen output and beam quality while drawing less power than traditional incandescent lamps.

Its daylight-white color temperature reveals the true color and contrast of runway markings and terrain—eliminating the dull, amber cast of legacy bulbs. Built to withstand the rigors of flight, every SunSpot 46 light mounts directly into standard PAR46 housings for straightforward installation.

This SunSpot 46-4000 series LED taxi light (EDMO# 46-4554) is a 28-volt unit.

Specifications

• Weight:
  20 oz
• Dimensions:
  5.6 x 5.6 x 1.9 in
• Mounting:
  Fits standard PAR 46 mounts
• Voltage:
  18–30 VDC, 28 VDC (Nominal)
• Current:
  6.3 A @ 28 VDC
• Power:
  175 W
• Peak Candela:
  100k (Peak)
• Beam Profile:
  20º Vertical x 50º Horizontal (@ 10% Peak)
• Lifespan:
  30,000 hours
• Lens Material:
  UV-coated polycarbonate
• Approvals:
  FAA-PMA/STC

Product Codes

• Mfr Part No
  01-2230-4554
• SCHEDULE B CODE
  8539.10.0030
