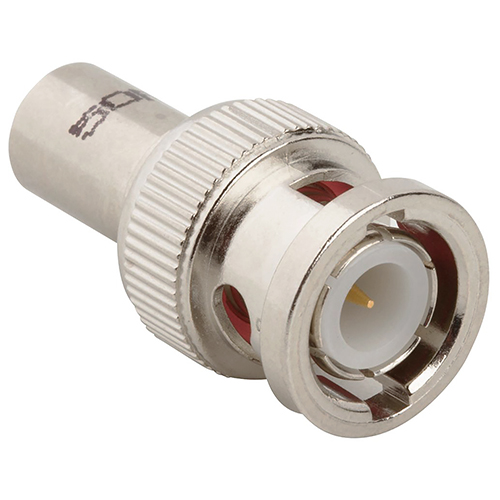

BNC Terminal Plug | 50Ω, 1 Watt, 0 — 4 GHz
AMPHENOL
EDMO#: 4665051RFX
MFR#: 000-46650-51RFX
Tariff fee may apply
Description
Features
- BNC terminator
- 1 watt maximum power handling
- 0 GHz — 4 GHz frequency response
- 50Ω impedance
Specifications
Dimensions:
14.5 x 28.1 mm
Impedance:
50Ω
Frequency Range:
0 GHz — 4 GHz
VSWR:
1.3 dB (17.7 dB max.), return loss
Dielectric Withstanding Voltage:
1,500 VRMS, min.
Durability:
500 cycles, min.
Temperature Range:
-65°C to 165°C
Body Material:
nickel-plated, brass
Contact Material:
gold-plated, brass
Insulation Material:
Delrin
Product Codes
Mfr Part No :
000-46650-51RFX
