Banana Plug Test Adapter | #22 Socket | Black
POMONA
EDMO#: 4690-0
MFR#: 66W7610
Description

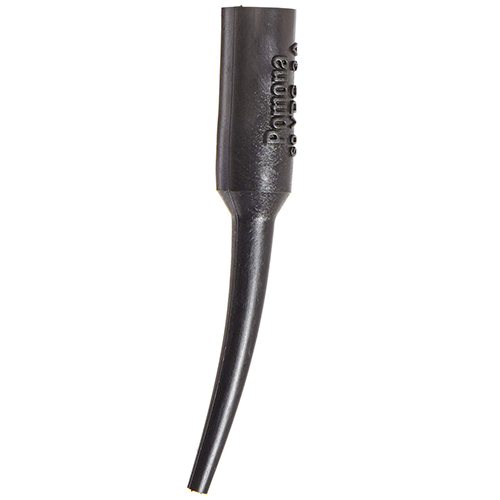

Pomona 4690-0 is a banana plug test adapter. It has a size 22 socket and is black in color.
Features
- Ideal test adapters for rapid testing of the hard-to-get to pins of multi-pin connectors.
- Flexible tip allows testing of adjacent contacts.
- Full insulation protects against shorting or contact damage.
- Model 4690 will also slip over 0.025” (0.63mm)
Specifications
Contact Size:
22 AWG .030” (.76mm)
Type:
Socket
Current:
3 Amps
Operating Temperature:
55ºC (131ºF) Max.
Insulation:
Polyvinyl Chloride (PVC)
Banana Jack Body (upper connector):
Material: Brass.
Finish: Bright Tin Plated
Socket (lower connector):
Material: Copper Alloy
Finish: Gold Plated over Copper Plating
Product Codes
Mfr Part No :
66W7610
