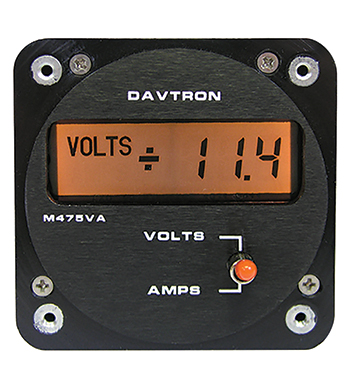

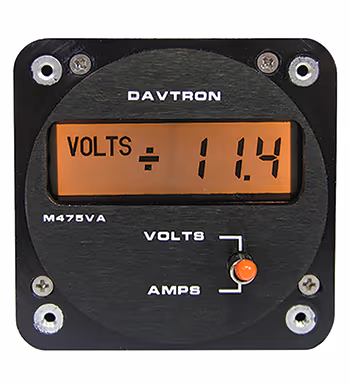

400 Series Voltage & Amperage Meter | 2-1/4 Mount, 14V Orange Lighting

400 Series Voltage & Amperage Meter | 2-1/4 Mount, 14V Orange Lighting

DAVTRON

Call For Pricing
Available to order
EDMO # 475VA-R14V
MFR Part # M475VA-R-14V
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The M475VA is a 2-function volt amp meter that can be used with a remote shunt with 14 volt lighting. This volt amp meter features a 100 DC volt range, 150 amp range, sunlight readable display, and remote lighting option.

This M475 Voltage & Amperage Meter (EDMO# 475VA-R14V) operates on 14V orange lighting and includes the remote option.

Features

  • Orange backlighting
  • Volts or amps toggle switch
  • Low current drain of 0.001 amp
  • 100.0 VDC range
  • Remote option
  • Sunlight readable display
  • 0.10 amp resolution
  • 0.10 volt resolution
  • FAA-PMA approved

Specifications

  • Dimensions:
    2.375 x 1.3 x 2.375 in
  • Range:
    8 to 32 V
  • Input voltage:
    14 to 28 V
  • Resolution:
    0.1 V
  • Input current:
    150 mA
  • Operating temperature:
    -25°C to +60°C

Related Products

Product Codes

  • Mfr Part No
    M475VA-R-14V
  • ECCN
    7A994
  • SCHEDULE B CODE
    9104.00.0000
