400 Series Voltage & Dual Amperage Meter | 2-1/4 Mount, 14V Orange Lighting

DC VOLTS/BATT AMP/ALT AMP/14V Lighting. Plus or Minus 150 AMP Range. Plus 100 Volt D.C. Range. Operating temperature: -25 degrees Celsius to 60 degrees Celsius.

DAVTRON

Call For Pricing
Available to order
EDMO # 475VAA-14V
MFR Part # M475VAA-14V
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

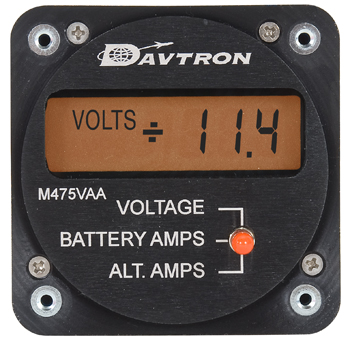

The M475VAA is a 3-function volt amp meter that can be used with a remote shunt with 14 volt lighting. This volt amp meter features a 100 DC volt range, 150 amp range, sunlight readable display, and remote lighting option. Displays voltage, battery amperage, and alternate amperage measurements.

The 475VAA-14V operates on 14V orange lighting

Features

  • Orange backlighting
  • Volts, battery amps, or alternate amps toggle switch
  • Low current drain of 0.001 amp
  • Plus or minus 150.0 amp range
  • Plus 100.0 VDC range
  • Remote option
  • Sunlight readable display
  • 0.10 amp resolution
  • 0.10 volt resolution
  • FAA-PMA approved

Specifications

  • Dimensions:
    2.375 x 1.3 x 2.375 in
  • Range:
    8 to 32 V
  • Input voltage:
    14 to 28 V
  • Resolution:
    0.1 V
  • Input current:
    150 mA
  • Operating temperature:
    -25°C to +60°C

Related Products

Product Codes

  • Mfr Part No
    M475VAA-14V
  • ECCN
    7A994
  • PMA
    PQ1062NM
  • SCHEDULE B CODE
    8803.90.9010
