Pushbutton Switch | SPDT, Momentary On/(Off) – Off/(On)

Product Description

Pushbutton switches are based around a plunger mechanism which can be illuminated, or sealed, and have multiple poles. They are available in a verity of sizes: from ultra-miniature board mounted switches to vandal-proof panel mounted switches.

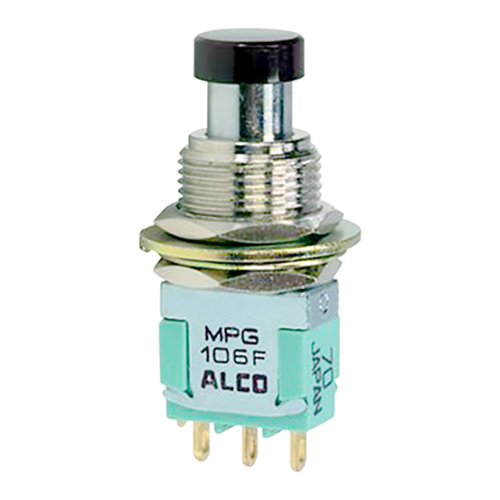

This pushbutton switch (EDMO# 514375670) is a single-pole, double throw type switch.

Specifications

• Actuator:
  Round
• Contact Form:
  SPDT
• Contact Plating:
  Gold plated, silver
• Current Rating:
  6 A
• Illumination:
  Non-illuminated
• Mounting Style:
  Panel
• Switch Type:
  Push button type
• Switch Function:
  On/(Off) – Off/(On)
• Termination Style:
  Solder lug
• Voltage Rating AC:
  250 VAC
• Voltage Rating DC:
  28 VDC

Product Codes

• Mfr Part No
  5-1437567-0

Documentation

• 5-1437567-x series push button switch drawing
