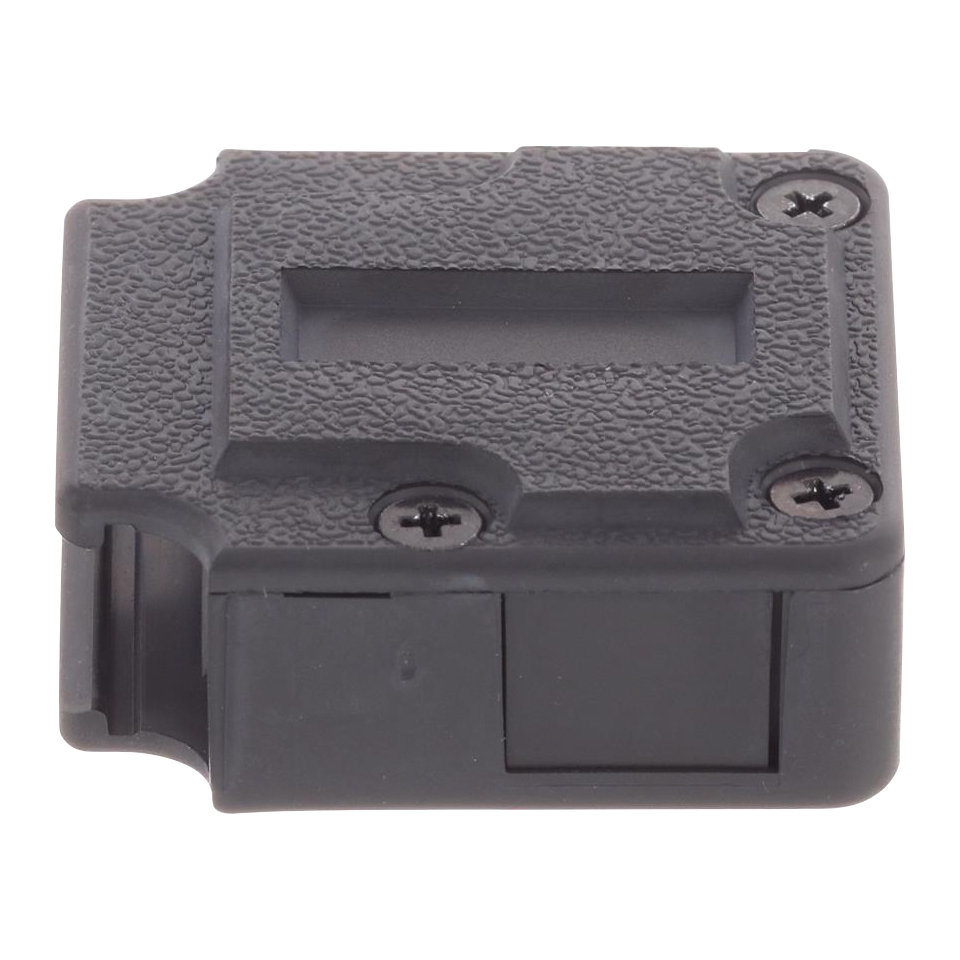

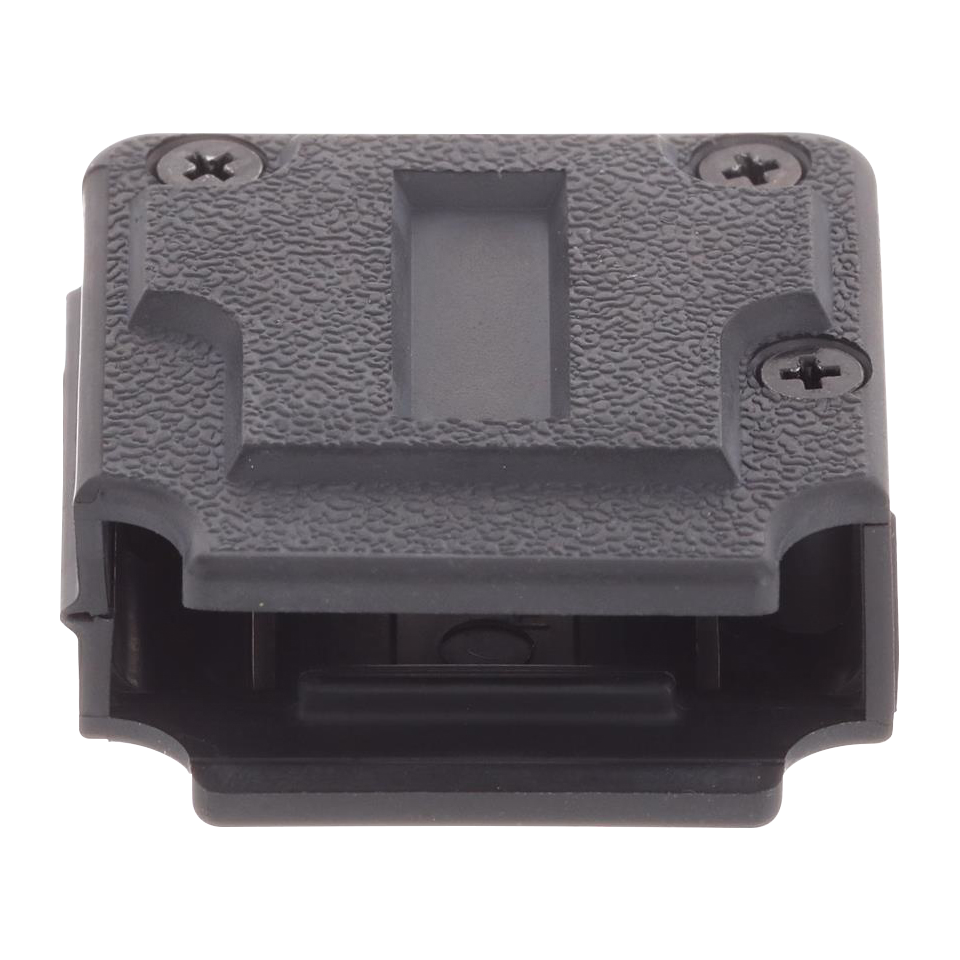

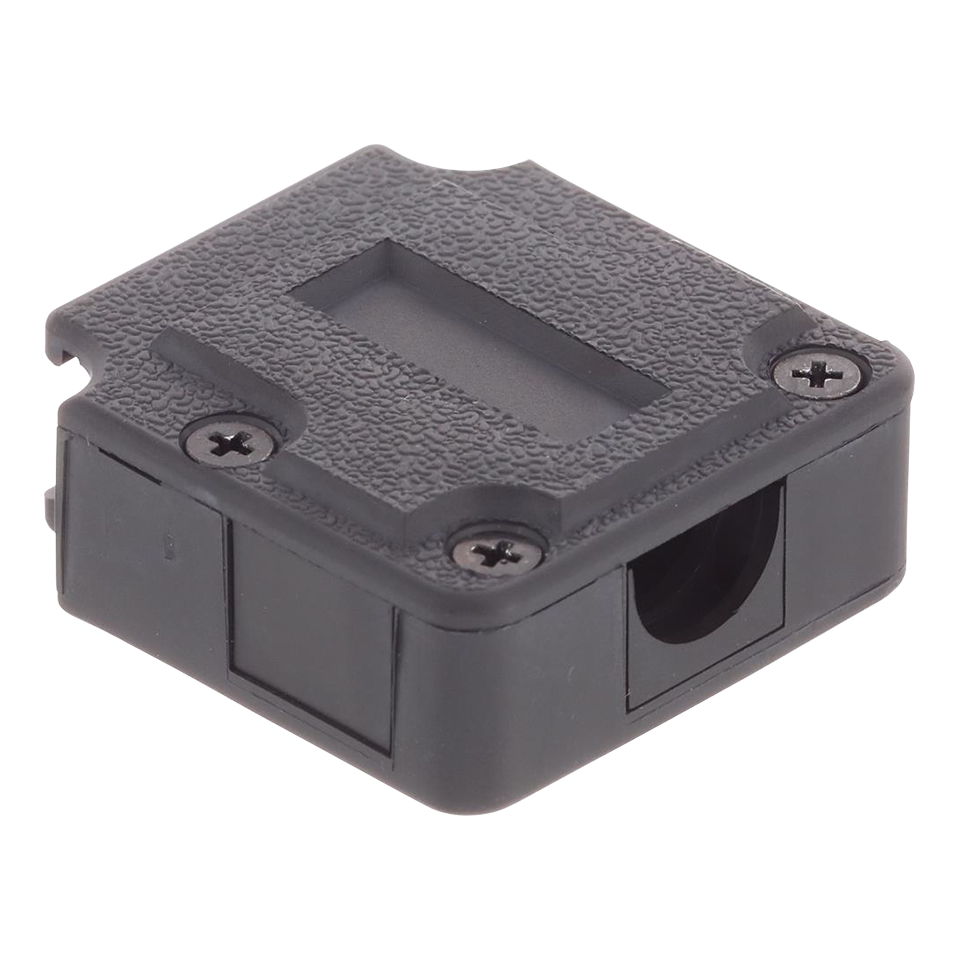

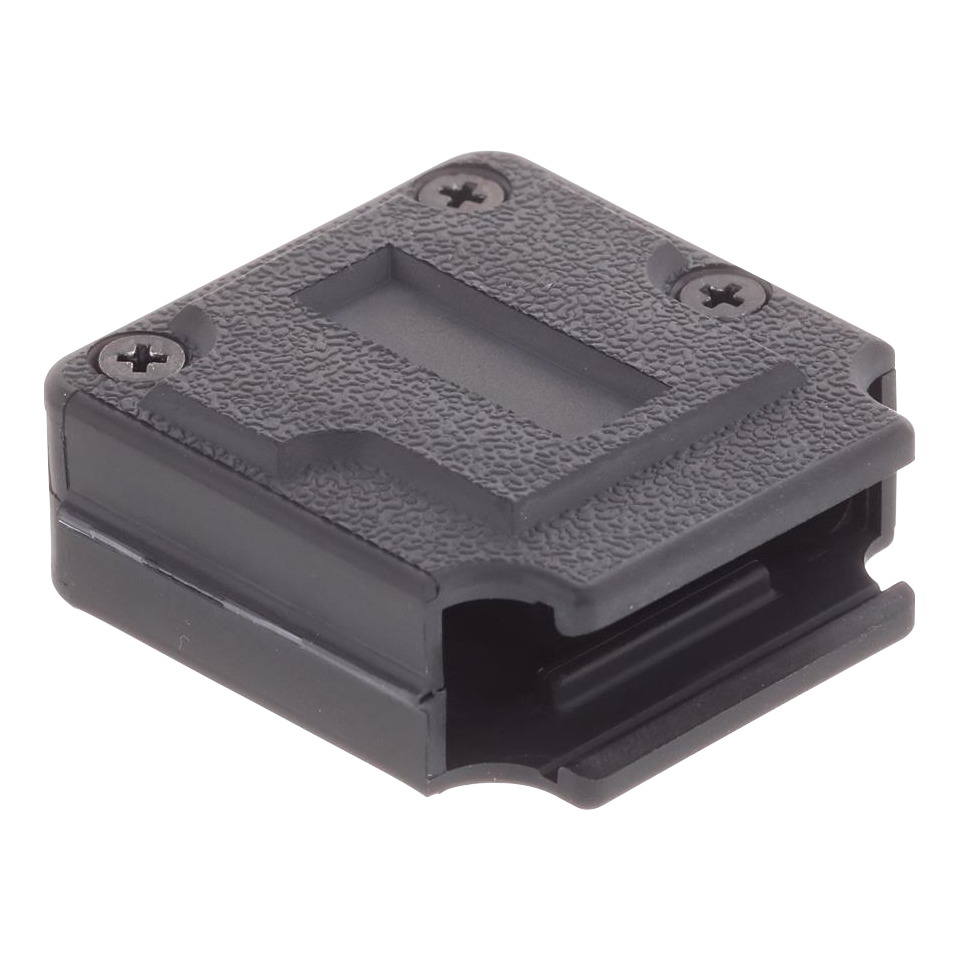

Unshielded Standard Cable Clamp Kit | #3 Shell Size, Straight/90° Entry

Product Description

Unshielded cable clamps allow the cable to exit the back shell at a straight/90° angle. They can be used with on either plugs or receptacles and will not interfere with commonly used hardware such as male screw retainers, female screw locks, or spring latches and latching blocks. The hinged assembly allows for easy installation over a wire harness.


This unshielded cable clamp kit (EDMO# 5207908-7) features a #3 shell size and a 2-entry cable angle to provide a straight or 90° cable exit.

Specifications

• Cable Entry Angle:
  Variable (straight/90°)
• Connector Type:
  D-Sub backshells
• Number of Cable Entries:
  2
• Shell Material:
  Thermoplastic
• Shell Plating:
  plastic
• Shell Size:
  3(B)
• Shell Type:
  Clam shell

Product Codes

• Mfr Part No
  5207908-7
• ROHS
  YES
