BNC RF Connector | Female, Dual Crimp, 50 Ohms, 4 GHz, Straight

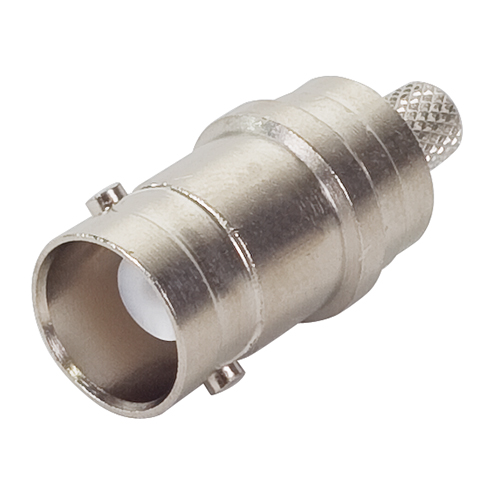

BNC CONNECTOR/Female, dual crimp, jack, 50 Ohms, 4 GHz, straight.

TE CONNECTIVITY

Call For Pricing
Available to order
EDMO # 5225396-2
MFR Part # 5225396-2
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Tyco Electronics BNC RF connector family with bayonet locking coupling provides highly reliable, quick connect/disconnect coaxial connections. Exclusive single and O crimp terminations allow positive insulation grip and require no soldering, providing terminations at a very low overall applied cost. Available in both 50 and 75 ohm versions, these connectors feature numerous styles including cable plugs and jacks, adapters and printed circuit board connectors. In addition to a variety of crimp type terminations, connectors are furnished in field replaceable and twist-on styles. These connectors accept a wide range of coaxial cables and are intermateable with industry standard connectors designed to MIL-C39012 specifications.

This BNC RF Connector (EDMO# 5225396-2) is a female, dual crimp, straight connector with a 50 Ω impedance and 4 GHz frequency range. It is for use with RG59, RG-59A, RG-59B, RG-62, RG-62A, RG-62B.

Features

  • Bayonet lock coupling for quick connect/disconnect
  • Various connectors available in 50 and 75 ohm versions
  • Fully intermateable with comparable BNC UG/U connectors
  • Full range of Hex Crimp and O Crimp Products for common coaxial cables
  • Low VSWR
  • Single crimp connectors offer one crimping operation for fast application
  • Twist-on connectors require no special tooling for application to the cable
  • Field serviceable (Category A) connectors qualified to MIL-C-39012
  • Field replaceable (Category C) plugs with captivated center contact
  • Field replaceable plugs can be terminated with industry standard tooling
  • Tarnish resistant Nickel finish available
  • Choice of different dielectrics

Specifications

  • Dimensions:
    0.436 x 1.200 in (11.08 x 30.48 mm)
  • RF Interface:
    BNC
  • RF Connector Style:
    Plug
  • Impedance:
    50 Ω
  • Operating Frequency Range:
    4 GHz
  • Compatible Cables:
    RG59, RG-59A, RG-59B, RG-62, RG-62A, RG-62B

Related Products

Product Codes

  • Mfr Part No
    5225396-2
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536694010
