Roundit® 2000 NX HT Self-Wrapping Wire Sleeving | High Temperature, 1"", Olive Green, 82' spool

ICO RALLY

CALL FOR PRICING
Special order
EDMO#5677102572
MFR#5677102572S

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

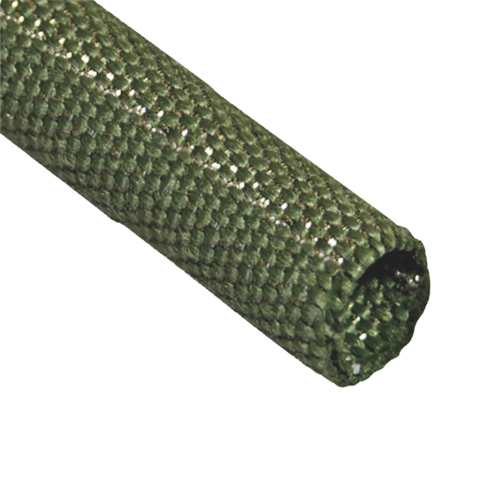

Roundit® 2000 NX is a woven combination of Nomex® and PPS (polyphenylene sulfide). The Nomex®/PPS blend is constructed in a flat weave which gives it a rugged and smooth texture and makes it ideal for high temperature wire bundling. This product is rated up to 200°C and contains no halogens. Roundit 2000 NX is ideal for commercial and defense aircraft applications due to its excellent abrasion resistance and halogen-free qualities.

Roundit self-wrapping wire wrap is lightweight and tough with over-sleeves used for bundling and protecting cable assemblies, hoses, and wire harnesses from chafing, cutting, and abrading. The self-wrapping feature allows quick and easy application and removal for assembly or maintenance.


This Roundit 2000 NX HT (EDMO# 5677102572) is ideal for high temperature applications and can wrap and protect cable bundles up to 1-inch in diameter, and colored olive green. 82-foot spool.

Features

  • Excellent cut-through and abrasion resistance
  • Halogen free
  • Tough fabric texture
  • Oil and water repellent
  • Self-wrapping design

Specifications

Material:
Nomex and PPS (polyphenylene sulfide)

Temperature:
-94°F to 500°F (-27°C to 260°C)

Approvals:
EN 6049-006
BMS 13-81 Type 1
DMS2379 Class 4, type 4
JN1149

Product Codes

  • Mfr Part No:5677102572S
  • EDMO #:5677102572
  • Brand:ICO RALLY
  • Category:Wire, Cable & Accessories
  • SCHEDULE B CODE:3917.32.0000
  • SCHEDULE B CODE:3917.32.0000
