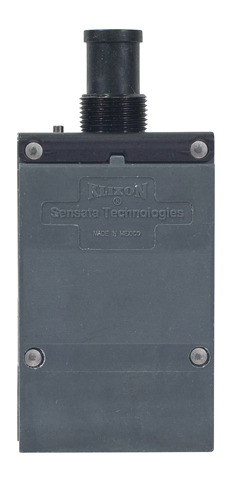

5TC7 Series Circuit Breaker | 50 Amp Rating

Select an option

KLIXON

Call For Pricing

In stock

EDMO # 5TC7-50

MFR Part # 5TC7-50

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Klixon® 5TC7 Series single–phase TC devices are the smallest, lightest, high performance aircraft circuit breakers available today. They represent the state-of-the-art protection of today’s aerospace power systems. Their light weight and small size make them especially well suited for aircraft, avionics and electronic systems. The 5TC series circuit breakers are available in 20A to 60A versions.

Includes hardware.

Features

This 5TC7 circuit breaker (EDMO# 5TC7-50) is rated for 50 amps.
Compact & Lightweight
Single–phase
Ambient compensated
Trip–free design
Coordinated ratings
High vibration resistance
High interrupting capacity
Options include: standard or auxiliary switch configuration, terminal barriers
Typical use: Aircraft, avionics and electronic systems

Also Purchased

Specifications

Weight:

Standard device: 53 grams (no hardware), 58 grams (hardware) Auxiliary device: 55 grams (no hardware), 59 grams (hardware)
Current Rating:

50 amps
Mechanical Shock:

50G
Acceleration:

10G
Vibrations:

10G minimum, 80–500 Hz (other vibration levels available)
Interrupt Current:

20–60 amps: 4000 amps at 28 VDC 20–60 amps: 2000 amps at 115 VAC, 400 Hz
Endurance:

2,500 cycles: 115 VAC, 400 Hz inductive 2,500 cycles: 28 VDC resistive 2,500 cycles: 28 VDC inductive 5,000 cycles: Mechanical, no load
ASNE:

ASNE0732-005 (our 5TC65 auxiliary device)
NSA:

NSA93121 (our 5TC50 standard device)
