TEL-66T Dynamic Hand Microphone | Straight PJ-068 Plug

TEL-66T Dynamic Hand Microphone | PJ-068 Plug

TELEX COMMUNICATIONS

Call For Pricing

In stock

EDMO # 60837-001

MFR Part # 60837-001

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

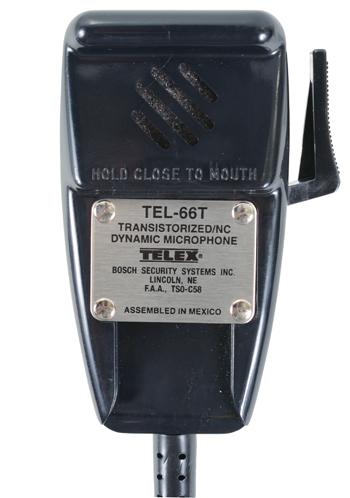

The Telex TEL-66T noise cancelling aircraft microphone that consist of a dynamic microphone cartridge, transistor amplifier, and push-to-talk switch in a rugged, black plastic case. Also included is a hanger bracket and mounting hardware.

Features

This 66T hand microphone (EDMO# 60837-001) has a straight PJ-068 connector plug, coiled cord, and mounting bracket.
Features:
Microphone gain adjustable through an opening in the back of the microphone
Straight PJ-068 plug
Approved for aircraft use under Federal Aviation Agency TSO-C58

Also Purchased

Specifications

Weight:

9 oz (255 g)
Dimensions:

3.725 x 2 x 1.125 in (94.62 x 51 x 28.58 mm)
Cable Length:

5 ft
Connector Plug Type:

Model TEL-66T: PJ-068 Model TEL-66TRA: Molded right angle (PJ-068 equiv.)
Microphone Type:

Close talking differential, dynamic element
Frequency Response:

100 Hz – 5000 Hz
Impedance:

50Ω – 60Ω
Sensitivity:

-48dB (re: 1V/μbar at 1kHz, 1/4-inch from microphone with 150Ω load and 12 VDC)
Supply Voltage:

8 VDC – 30 VDC
Current Requirements:

15 mA @ 12V, 100Ω load 30 mA @ 24V, 100Ω load
Switch:

Microphone and relay circuits normally open
Cable:

5 ft, 3-conductor coil cord (extended length)
