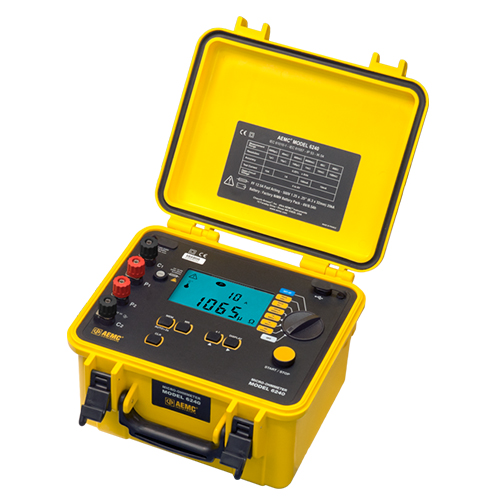

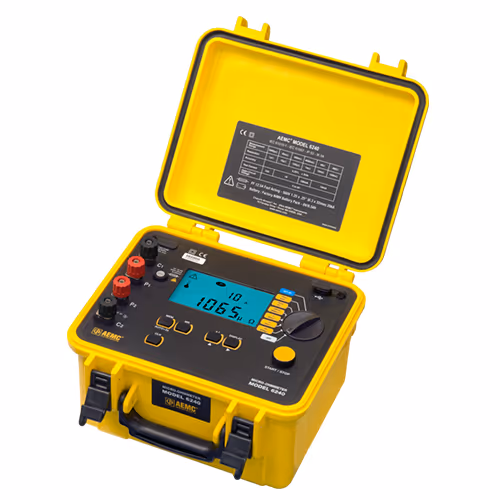

Micro Ohmmeter | 4 Wire, 400 Ohm, 10A

Micro Ohmmeter | 4 Wire, 400 Ohm, 10A

AEMC

Call For Pricing
Available to order
EDMO # 6240-
MFR Part # 6240
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 10A Micro-Ohmmeter Model 6240 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method of testing, the Model 6240 Micro-Ohmmeter accurately measures very low resistance within 0.25%. Resistance measurements are automatically calculated from 5 μΩ to 400 Ω with resolutions down to 1 μΩ. The Model 6240 has selectable test currents of 10 A, 1 A, 100 mA and 10 mA and includes a polarity reversal function The model 6240 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC. DataView® (included) allows you to configure the instrument, temperature-compensate the test results, store data, and print reports.

Features

  • Reliable low resistance measurements from
  • 5 µΩ to 400 Ω
  • Four-terminal Kelvin resistance measurement
  • eliminates test lead resistance
  • 10 A test current up to 4000 µΩ
  • ± 0.25 % basic accuracy
  • 1 µΩ resolution
  • Direct reading, easy to operate
  • Six selectable resistance ranges
  • Reverse polarity button
  • Overload and input fuse protection
  • Manufactured to international safety and
  • environmental standards
  • Automatic decimal point and zeroing
  • Large terminals accept banana plugs and
  • spaded lugs
  • Rechargeable NiMH battery with internal charger
  • (110/220 V). Can be charged during operation
  • Large multifunctional backlit display
  • Includes power cord and isolated USB cable
  • Includes DataView® software for data retrieval,
  • real-time display, analysis and report generation

Specifications

  • Weight:
    10 lbs (4.5 kg)
  • Dimensions:
    10.70 x 9.76 x 7.18 in (272 x 248 x 182 mm)
  • Storage Memory:
    99 tests, supplied with DataView® software for download and reporting
  • Automatic Storage of Test Results:
    Yes
  • Battery:
    Rechargeable NIMH battery pack 6V, 8.5Ah
  • Battery Life:
    10 A: ≥ 850 tests with a duty cycle of 5 seconds on and 25 seconds off 1 A: ≥ 3500 tests with a duty cycle of 5 seconds on and 25 seconds off 100 mA: ≥ 4500 tests with a duty cycle of 5 seconds on and 25 seconds off 10 mA: ≥ 5000 tests with a duty cycle of 5 seconds on and 25 seconds off In Standby Mode: 4 to 6 months
  • Operating Temperature:
    -10°C to 55°C (14°F to 131°F) & 10 to 85% RH
  • Storage Temperature:
    -40°C to 70°C (-40°F to 158°F) & 10 to 90% RH
  • Altitude Operating:
    2000 m
  • IP Rating:
    IP 54 per IEC 60529 cover closed
  • Safety:
    IEC/EN 61010-1 category III 50V, Pollution Degree 2

Product Codes

  • Mfr Part No
    6240
