500T Electret Hand Microphone | XLR-4-12C connector

TELEX COMMUNICATIONS

Call For Pricing

Available to order

EDMO # 63333-007

MFR Part # 63333-007

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

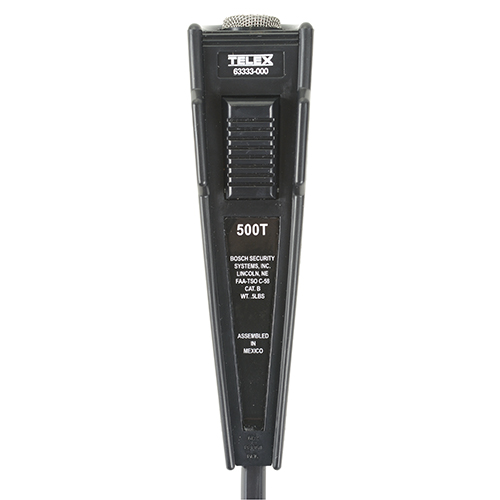

The Telex 500T noise-canceling aviation microphone consists of an electret microphone, amplifier, and push-to-talk switch within a rugged plastic housing. A hanger bracket and mounting hardware is also supplied with the microphone. The 500T is extremely resistant to interference, hum, and squealing induced by 400 Hz power systems.

Features

Noise cancelling microphone resistant to interference, hum, and squealing induced by 400 Hz power systems
Effectively cancels noise, minimizes popping, hissing, and breathing sounds for clearer communications
Adjustable microphone gain control is easily accessible
FAA TSO-C58 Approval

Specifications

Weight:

6.49 oz (184 g)
Dimensions (without cord):

5.062 x 1.55 x 1.312 in (128.57 x 39.37 x 33.32 mm)
Frequency Response:

100 Hz – 8,000 Hz
Impedance:

50Ω – 600Ω
Microphone Sensitivity:

-48 dBV/Pa
Amplifier:

Gain: adjustable over approximate ±5 dB range Supply voltage: 8 VDC – 30 VDC Current: 15mA at 12 VDC while PTT switch is pressed, 1.4 mA when not pressed
Switching:

PTT switch activation turns on amplifier and brings PTT to ground
Cable:

Coiled, 3-conductor (black) Retracted length: 11 in (279 mm) extended length: 5 ft (1.5 m)
Plug:

XLR-4-12C connector
FAA Approval:

TSO-C58
