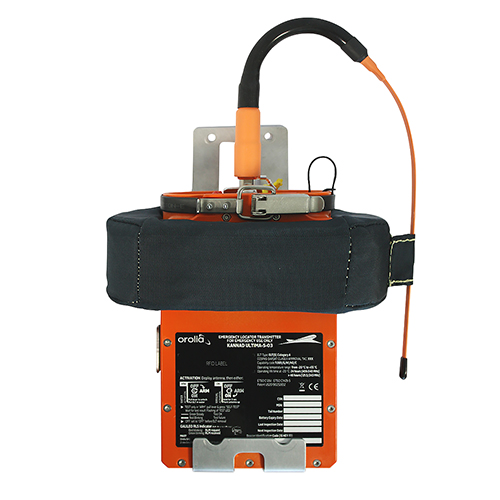

Ultima-S Survival Emergency Locator Transmitter | Includes RLS, MnO2 lithium battery, 6-year life


MCMURDO

Call For Pricing
A tariff fee of $580.58 EA may apply.
Available to order
EDMO # 63501-04
MFR Part # S1863501-04
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Ultima-S is the next generation Survival Emergency Locator Transmitter (ELT) that is compliant with the lithium batteries special conditions requirement set by the FAA and EASA. This ELT is designed to be installed aircraft cabins and life rafts while offering a variety of installation configurations when using a mounting bracket or bag.


This Ultima-S ELT (EDMO# 63501-04) includes the return link service (RLS) functionality.

Features

  • Compliant with the EASA/FAA special conditions combining lithium battery technology and smart design for FAA/EASA lithium battery requirements
  • Easy integration through various installation options
  • Manual & automatic activation upon contact with water
  • Two-frequency transmitter (121.5 & 406MHz)
  • Accurate location provided by the embedded GNSS receiver using both GPS and Galilio satellite constellations for fast signal detection
  • Return link service (RLS) provides visual indicator that a distress signal has been successfully received (EDMO# 63501-04)

Specifications

  • Weight:
    1.94 kg (with bracket)
  • Dimensions:
    320 x 200 x 105 mm (with antenna)
  • Battery Type:
    Lithium, MnO2
  • Battery Life:
    6 years
  • ELT Type:
    Category A; Class 2, COSPAS SARSAT ELT
  • Activation:
    Manual & water switch (cat. A variants)
  • Signal/Message:
    406 MHz, First Generation Beacon; Programmable protocols 121.5 MHz homing signal 243 MHz military homing signal
  • Location:
    GPS and Galileo L1 internal receiver
  • Distress acknowledgement through Galileo RLS Type 1 (RLS version)
    Mounting: Horizontal & vertical with bracket, bag
  • Programming:
    PR600 programmer or dongle, via dedicated connector
  • RFID tag
  • COSPAS SARSAT short self-test and GNSS self-test
  • Temperature Environment:
    -20°C to 55°C (full operating lifetime) -20°C to 30°C (storage)
  • Approvals & Certifications:
    COSPAS SARSAT TAC 2350, 350 (E) TSO C126c, (E) TSO-C142b

Related Products

Product Codes

  • Mfr Part No
    S1863501-04
  • SCHEDULE B CODE
    8525.50.8020
