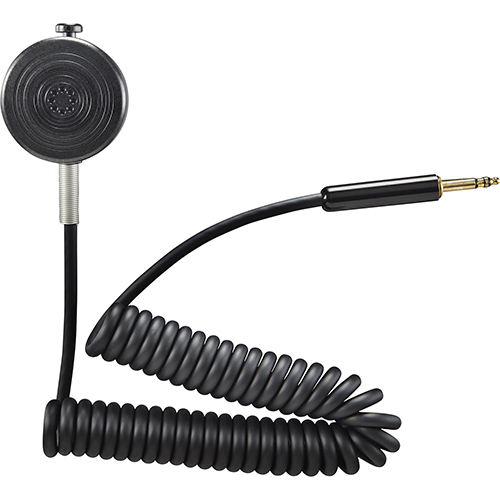

38T Noise Cancelling Electret Microphone | PJ-068 Connector, TSO

Product Description

The Model 38T is a noise-canceling, hand-held aviation microphone. It consists of an electret microphone element, a microphone amplifier, and a push-to-talk switch enclosed in a rugged, black plastic housing. The 38T is extremely resistant to interference, hum, and squealing induced by 400Hz power systems. Also, the harsh switch popping common to other microphones has been eliminated in the 38T through the use of electronic switching.

This 38T handheld microphone (EDMO# 63999-000) is a FAA approved noise cancelling electret microphone that features built-in microphone gain adjustment.

Specifications

• Weight:
  8 oz (227 g)
• Microphone Sensitivity:
  -45 dB – -51 dB (re: 1 V / μbar @ 1 kHz, 12 VDC)
• Microphone Type:
  Close talking differential, electret element
• Mounting:
  External Diameter mount
• Frequency Response:
  300 Hz – 3 kHz
• Matching Impedance:
  50Ω – 600Ω
• Supply Voltage:
  8 VDC – 32 VDC
• Current Requirement:
  11.2 mA @ 12V, 150Ω load
• Connector Type:
  PJ-068 (63999-000)
• Cable Length:
  11.5 in (292 mm), retracted 6 ft (1.8 m), extended
• Approvals:
  FAA TSO C-58

Product Codes

• Mfr Part No
  63999-000
• ECCN
  7A994
• SCHEDULE B CODE
  8518.10.0000
• TSO
  C58

Documentation

• 38T Datasheet
