MD23 FLEX Custom Function Display | 2in, LCD, Multi I/O

TRUE BLUE POWER

Call For Pricing

Available to order

EDMO # 6420023-1

MFR Part # 6420023-1

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

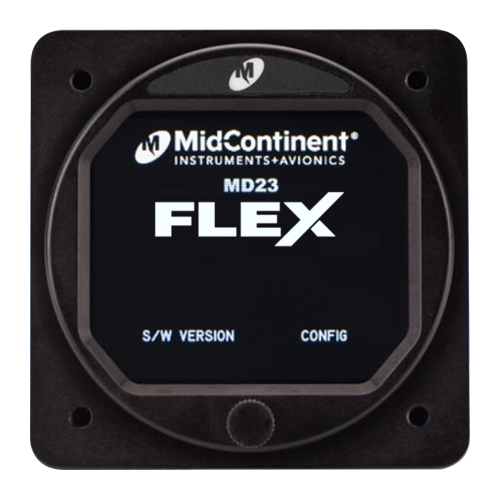

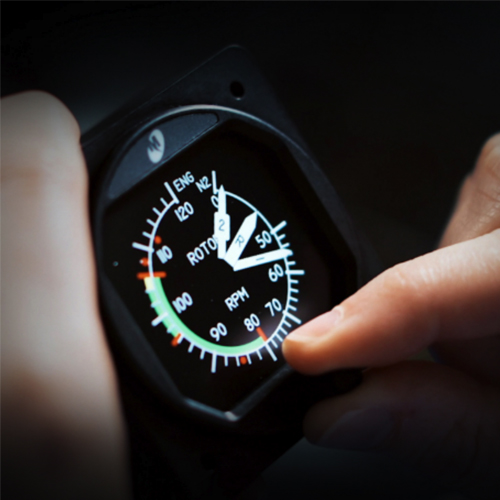

The MD23 series FLEX Custom Function Display (“CFD”) is a panel-mounted instrument capable of displaying various inputs in a configurable graphical presentation. FLEX is an off-the-shelf solution that is FAA and EASA TSO-approved with Level A design assurance software certification. FLEX has the ability to receive and send multiple types of inputs and outputs, allow user interface, and display custom designed graphics.

The unique Multi-I/O (MIO) feature allows twelve of the unit’s electrical inputs to be configured per the CID file to either accept or output various types of signals and information. MIO pins can be defined to be an analog input, a discrete on/off input, an analog output, or a discrete output.

Features

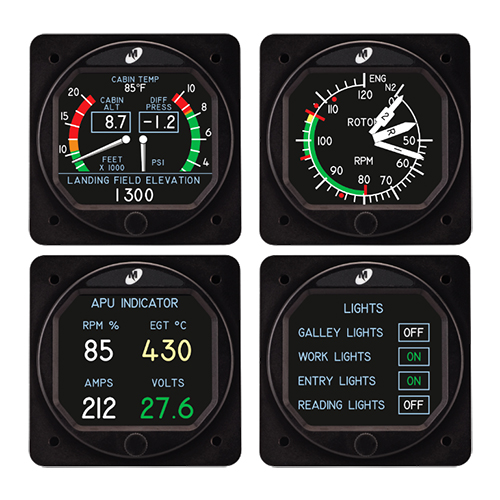

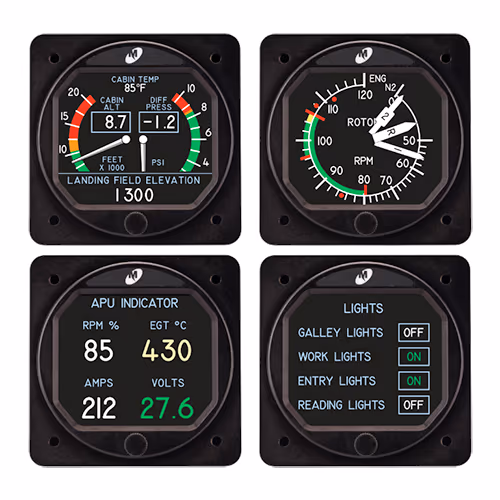

Customizable data parameters (inputs/outputs), user interface and graphics
Receives and displays ARINC 429, analog, discrete, frequency, temperature, absolute and differential pressure data
Standard 2-inch size
Lightweight — 0.4 lbs
Simple user interface — Push-and-turn control knob
Daylight readable LCD and high-definition graphics
External lighting control and built-in photocell for automatic dimming
Field-upgradeable software via standard USB-A port
TSO-certified hardware and software (Design Assurance Level A)

Specifications

Weight:

0.4 lb
Dimensions:

2.43 x 2.43 x 1.0 in.
Mating connectors:

26-pin D-Suband backshellMCIA p/n 9019162-1 Pneumatic fittings MCIA p/n 9019162-2
Input voltage:

10-32 VDC
Input power:

4watts (0.14A @ 28VDC)
Lighting input:

5, 14, or 28VDC or automatic photocell control
Battery backup (memory only):

(1) rechargeable coin cell
Data inputs and outputs
Analog:

Input - 0-27.5VDC, ±0.050V accuracy, input impedance >50Kohms Output - 0-5VDC, ±0.050V accuracy, input impedance >50Kohms
Discrete:

Input - Sensing of open or ground Output - Open, Ground, Pullup to 5V
Frequency:

Input - 0.5-100VDC pk-pk, input impedance >50K ohms 10-2000 Hz(2 input pairs; differential or single point to ground) 10-20,000 Hz(1 input pair; differential or single point to ground)
ARINC 429:

Input - Low/High Speed input; 2 pair Output - High Speed output; 1 pair
RS-232:

Protocol per RS-232 specification; data format per CID; 1 pair
Thermocouple:

Type K; 1 pair; cannot be grounded
Pressure:

Static - 0-15 psi absolute Pitot - ±15 psi differential
Certifications:

FAA/EASATSO-C2d (Type B), C10c, C106, C113b
Environmental qualification:

RTCA DO-160G
Software qualification:

RTCA DO-178C, Design Assurance Level A
Lithium-ion qualification:

UL 1642
