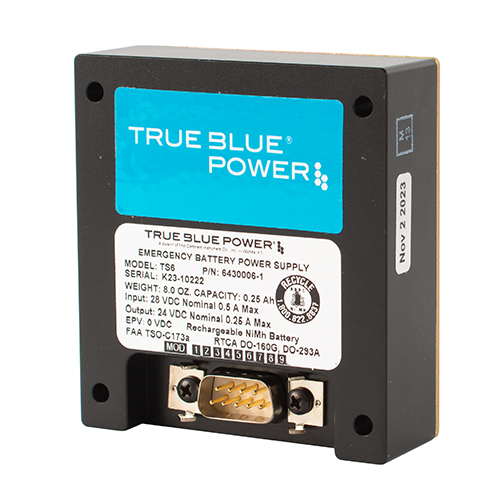

TS6 Emergency Battery Power Supply | 24 VDC, 0.25 A Output, 24-32 VDC Input

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

In stock

EDMO # 6430006-1

MFR Part # 6430006-1

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TS6 Emergency Battery Power Supply provides DC power to aircraft electronics, including Mid-Continent Instruments and Avionics 2-inch digital instruments and the Flex® Custom Function Display, when main aircraft power fails.The TS6 is compatible with avionics or components that require 28 VDC input and is designed to provide power for one instrument at a time. The TS6 can be fully recharged or maintain a full charge via the aircraft's primary power bus. Key functions include analog state-of-charge, 80% capacity dispatch test, and discharge shutdown.

Features

Utilizes Nickel Metal Hydride (NiMH) battery technology
Unit can be fully recharged, or will maintain existing full charge, via aircraft’s primary power bus
Rugged metal chassis and DB9-style connector for electrical interface
Recommended 2-year maintenance cycle (full charge and discharge capacity check)
FAA TSO Certified

Specifications

Weight:

0.5 lb
Dimensions:

2.75 x 3.00 x 0.94 in
Capacity:

6 Wh
Input Voltage:

24.5 – 32 VDC
Output Power:

24 VDC nominal, 0.25 A maximum
Technology:

Nickel Metal Hydride (NiMH)
Battery:

4 – 5 years
Recharging:

Can be fully recharged or maintain existing full charge via aircraft’s primary power bus
Life Expectancy Protection:

Short circuit, over temperature, under-voltage, and over-voltage
Mating Connector:

DB9-style 9019857 CASE Anodized aluminum
Certification:

FAA TSO-C173a certified, DO-293A qualified, RTCA DO-160G qualified
