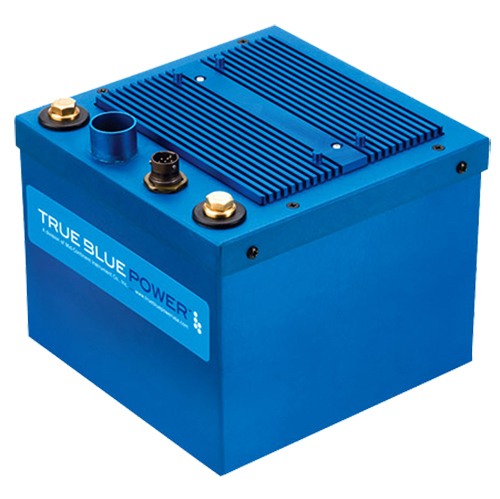

TB17 Advanced Lithium-Ion Battery | 26.4 VDC, 17 Ah

TB17 Advanced Lithium-Ion Battery | 17 amp-hour

Select an option

TRUE BLUE POWER

Call For Pricing

Available to order

EDMO # 6430017-1

MFR Part # 6430017-1

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TB17 Advanced Lithium-Ion battery is ideal for piston and turbine driven aircraft to provide quick engine starts and emergency power. The TB17 features NanoPhosphate® lithium-ion cells, which offers three-times more energy per kilogram, resulting in a battery that is 45% lighter than lead-acid or nickel-cadmium alternatives.

Features

17 amp-hour battery at 23°C, nominal
Lighter than lead-acid and nickel-cadmium alternatives — only 16 lb
Advanced NanoPhosphate® lithium-ion cell chemistry
Seven engine starts in 7 minutes
30 minutes (at 34 amps) for complete recharge when the battery is fully discharged
Superior performance at extreme temperatures (-40°C to 70°C)
Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
Communicates battery status to the cockpit
Higher voltage during engine start — Less wear, less maintenance and increased useful life
2-year maintenance interval
8-year useful life, average
Designed and built in Wichita, Kansas, USA

Specifications

Weight:

16 lb (7.26 kg)
Dimensions:

7.22 x 7.37 x 6.01 in
Capacity:

17 Ah at 23°C, nominal
Charge Voltage:

28 VDC, nominal
Output Current:

500A continuous, 840A max
Technology:

Advanced NanoPhosphate® lithium-ion cell chemistry
Protection:

Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting
Energy Density:

64.4 watt-hour/kg 87.1 watt-hour/liter
Temperature:

-40°C to 70°C (-40°F to 158°F), operating
Configuration:

7P8S; 7 parallel cells x 8 series modules
Maintenance:

2-year maintenance interval
Useful Life:

8-year, average
Case:

Anodized aluminum, blue
Certifications:

FAA TSO certified to C179a ETSO certified to C179a RTCA DO-311 qualified RTCA DO-160G qualified UNDOT/IATA qualified
